The MX25R6435FM2IH0 has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on usage and environmental conditions.
The HOLD# signal should be kept low during read and write operations to ensure proper communication with the device. If the HOLD# signal is asserted high, the device will ignore any incoming commands.
The recommended power-up sequence is to apply VCC first, followed by VPP (if used), and then the clock signal. This ensures proper device initialization and prevents latch-up conditions.
The WP# signal should be tied low to enable write operations. If WP# is tied high, the device will be in read-only mode, and write operations will be blocked.
The maximum operating frequency for the MX25R6435FM2IH0 is 104 MHz, but the actual frequency may vary depending on the system design and environmental conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MX25R6435FM2IH0 Overview

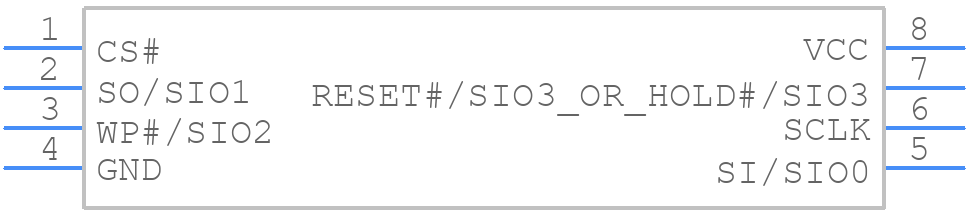

Use the download button to access the MX25R6435FM2IH0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MX25R,
or try a keyword search, such as Flash Memories
