MX25U3232FZBI02 - Macronix

Description: IC FLASH 32MBIT SPI/QUAD 8USON

Download MX25U3232FZBI02 Model

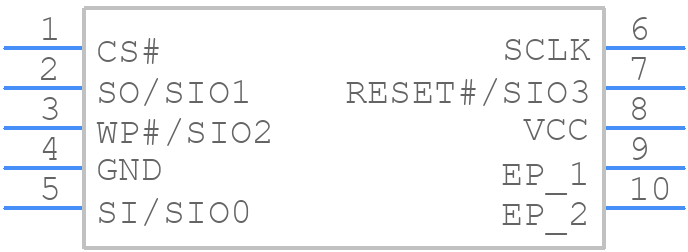

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MX25U3232FZBI02 - Macronix PCB footprint - Other - Other - MX25U3232FZBI02-3
click to zoom
3D Models
MX25U3232FZBI02 - Macronix  - 3D model - Other - MX25U3232FZBI02-3
click to zoom

MX25U3232FZBI02 Details

  • Manufacturer Part Number:

    MX25U3232FZBI02

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Date Of Intro:

    2019-11-14

  • Manufacturer:

    Macronix International Co Ltd

  • YTEOL:

    4

  • Additional Feature:

    32MX1BIT MEMORYCONFIGURATION IS ALSO AVAILABLE

  • Alternate Memory Width:

    2

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    20

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Memory Density:

    33554432 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    4194304 words

  • Number of Words Code:

    4000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    4MX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSON

  • Package Equivalence Code:

    SOLCC8,.12,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    0.6 mm

  • Standby Current-Max:

    0.000005 A

  • Supply Current-Max:

    0.025 mA

  • Supply Voltage-Max (Vsup):

    2 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    3 mm

  • Write Protection:

    HARDWARE/SOFTWARE

MX25U3232FZBI02 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the MX25U3232FZBI02 is 104 MHz.
  • The HOLD# signal should be kept low during read and write operations. If the HOLD# signal is asserted high, the device will enter a 'hold' state, and all current operations will be suspended.
  • The WP# pin is used to prevent accidental writes to the status register. When WP# is low, the status register is write-protected, and when WP# is high, the status register can be written.
  • To perform a sector erase operation, send the Sector Erase command (0x20) followed by the address of the sector to be erased. The device will then erase the entire sector.
  • The main difference between the two devices is the package type. The MX25U3232FZBI02 is available in a BGA package, while the MX25U3232FZNI02 is available in a WSON package.
