MX25UM25645GMI00/TR - Macronix

Description: FLASH - NOR (SLC) Memory IC 256Mbit SPI - Octal I/O, DTR 200 MHz 5 ns 16-SOP

Download MX25UM25645GMI00/TR Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MX25UM25645GMI00/TR model

Email notifications will be applied after download.

Send part feedback

Symbol

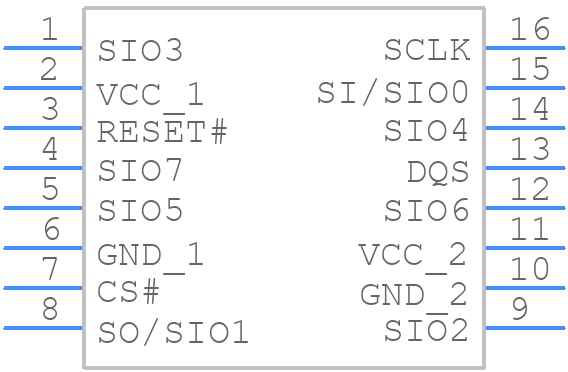

MX25UM25645GMI00/TR - Macronix - PCB symbol

PCB Footprints

MX25UM25645GMI00/TR - Macronix PCB footprint - Small Outline Packages - Small Outline Packages - 16-pin SOP (300mil)

3D Models

MX25UM25645GMI00/TR - Macronix - 3D model - Small Outline Packages - 16-pin SOP (300mil)

Datasheet Download Datasheet
Stock & Prices Price & Stock for MX25UM25645GMI00/TR
Part Number MX25UM25645GMI00/TR
Manufacturer Macronix
Pin Count 16
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 16-pin SOP (300mil)
Released Date Apr 7, 2026
Last Modified Date Apr 7, 2026 2:37 AM UTC
Pinout / Pin List Click Here (Member Only)

MX25UM25645GMI00/TR Details

Manufacturer Part Number:
MX25UM25645GMI00/TR
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Taiwan
ECCN Code:
EAR99
HTS Code:
8542.32.00.51
Factory Lead Time:
10 Weeks
Manufacturer:
Macronix International Co Ltd
Memory IC Type:
FLASH
Programming Voltage:
1.8 V
