The MX25V1635FZNQ has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on the usage and operating conditions.
The HOLD# signal should be kept low during read and write operations. If the HOLD# signal is asserted high, the device will enter a 'hold' state, and all operations will be suspended until the HOLD# signal is de-asserted.
The recommended power-up sequence is to apply VCC first, followed by VPP (if used), and then the clock signal. This ensures that the device is properly initialized and ready for operation.
The WP# signal is used to protect the device from accidental writes. When WP# is asserted low, the device is write-protected, and any write operations will be ignored. When WP# is de-asserted high, the device is writable.
The maximum operating frequency for the MX25V1635FZNQ is 104 MHz. However, the actual operating frequency may be limited by the system design and the quality of the clock signal.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MX25V1635FZNQ Overview

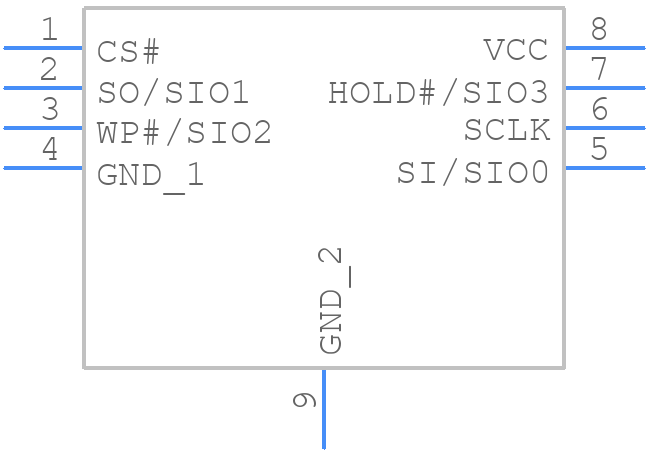

Use the download button to access the MX25V1635FZNQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MX25V,
or try a keyword search, such as Flash Memories
