MX25V8035FM1I - Macronix

Description: NOR Flash Serial 3.3V 8M-bit 8M/4M/2M x 1/2-bit/4-bit 8ns 8-Pin SOP

Download MX25V8035FM1I Model

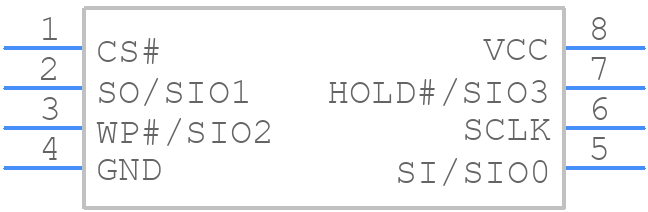

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MX25V8035FM1I - Macronix PCB footprint - Small Outline Packages - Small Outline Packages - 8-SOP (150MIL)
click to zoom
3D Models
MX25V8035FM1I - Macronix  - 3D model - Small Outline Packages - 8-SOP (150MIL)
click to zoom

MX25V8035FM1I Details

  • Manufacturer Part Number:

    MX25V8035FM1I

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Japan, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Macronix International Co Ltd

  • YTEOL:

    6

  • Alternate Memory Width:

    4

  • Clock Frequency-Max (fCLK):

    108 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Memory Density:

    8388608 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    1048576 words

  • Number of Words Code:

    1000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    1KX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    1.75 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    5e-7 A

  • Supply Current-Max:

    0.0095 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    3.9 mm

  • Write Protection:

    HARDWARE/SOFTWARE

MX25V8035FM1I Frequently Asked Questions (FAQs)

  • The MX25V8035FM1I has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on the usage and operating conditions.
  • The HOLD# signal should be kept low during read and write operations. If the HOLD# signal is asserted high, the device will enter a 'hold' state, and all operations will be suspended until the HOLD# signal is de-asserted.
  • The recommended power-up sequence is to apply VCC first, followed by VPP (if used), and then the clock signal. This ensures that the device is properly initialized and ready for operation.
  • The WP# signal should be tied high to enable write operations. If WP# is tied low, the device will be in a write-protected state, and all write operations will be ignored.
  • The maximum operating frequency for the MX25V8035FM1I is 50 MHz, but it can be operated at lower frequencies depending on the specific application requirements.
