MX29GL512FUT2I-11G - Macronix

Description: SINGLE VOLTAGE 3V ONLY FLASH MEMORY

Download MX29GL512FUT2I-11G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

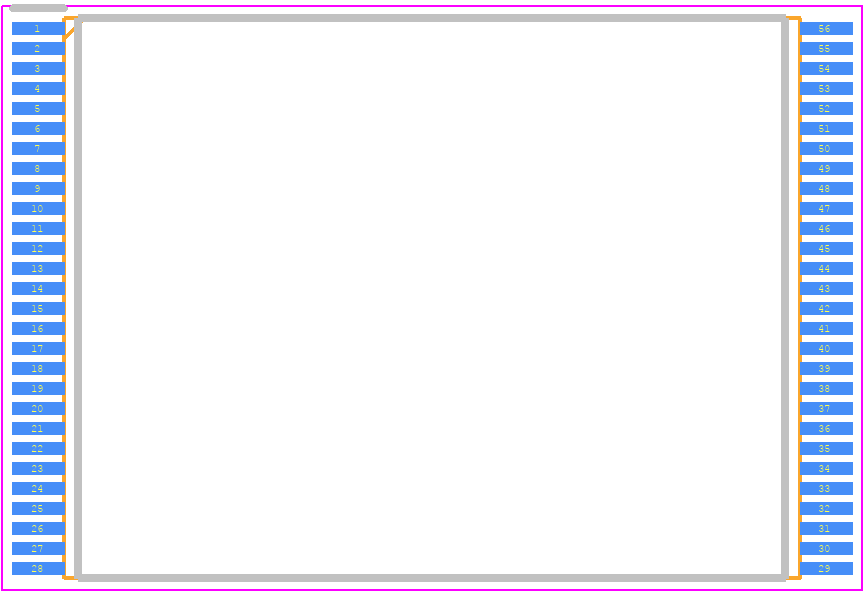

MX29GL512FUT2I-11G - Macronix PCB footprint - Small Outline Packages - Small Outline Packages - TSOP(1) 56L
click to zoom
3D Models
MX29GL512FUT2I-11G - Macronix  - 3D model - Small Outline Packages - TSOP(1) 56L
click to zoom

MX29GL512FUT2I-11G Details

  • Manufacturer Part Number:

    MX29GL512FUT2I-11G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    14 X 20 MM, HALOGEN FREE AND ROHS COMPLIANT, MO-142, TSOP1-56

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Macronix International Co Ltd

  • YTEOL:

    0

  • Access Time-Max:

    110 ns

  • Alternate Memory Width:

    8

  • JESD-30 Code:

    R-PDSO-G56

  • JESD-609 Code:

    e3

  • Length:

    18.4 mm

  • Memory Density:

    536870912 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    16

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    56

  • Number of Words:

    33554432 words

  • Number of Words Code:

    32000000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    32MX16

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Parallel/Serial:

    PARALLEL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    14 mm

MX29GL512FUT2I-11G Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MX29GL512FUT2I-11G is -40°C to 85°C.
  • The HOLD# signal should be asserted low to pause the current operation and de-asserted high to resume the operation. During hold, the device will tri-state its outputs and ignore any input signals.
  • The WP# pin is used to prevent accidental writes to the device. When WP# is low, the device is in write-protect mode, and any write operations will be ignored.
  • The MX29GL512FUT2I-11G is a 512Mbit (64MB) flash memory device, organized as 8192 blocks of 64K bytes each.
  • The typical programming time for the MX29GL512FUT2I-11G is 3-5 seconds for a full chip erase, and 10-15 microseconds for a single byte program operation.
