MX30LF1G18AC-TJ - Macronix

Description: FLASH - NAND (SLC) Memory IC 1Gbit ONFI 16 ns 48-TSOP,2.7V ~ 3.6V,-40°C ~ 105°C (TA)

Download MX30LF1G18AC-TJ Model

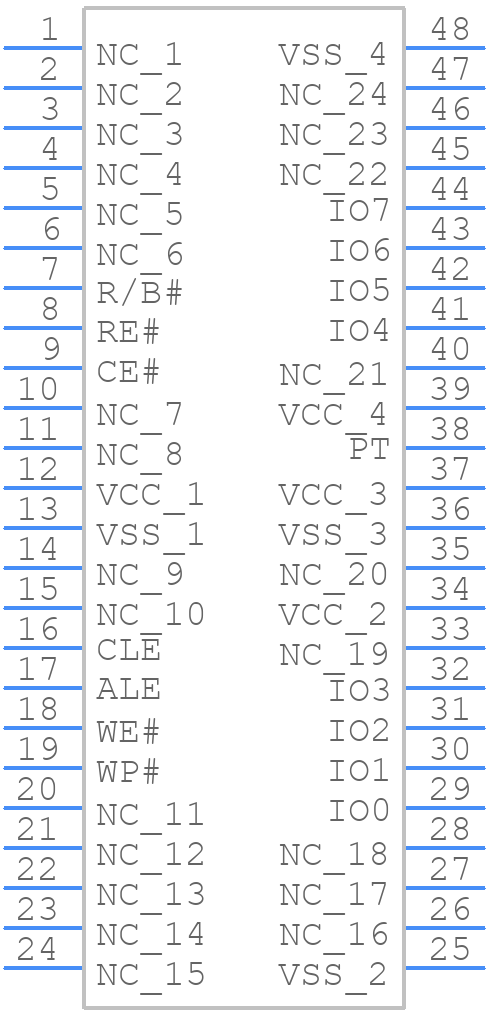

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MX30LF1G18AC-TJ - Macronix PCB footprint - Small Outline Packages - Small Outline Packages - TSOP (I) 48L
click to zoom
3D Models
MX30LF1G18AC-TJ - Macronix  - 3D model - Small Outline Packages - TSOP (I) 48L
click to zoom

MX30LF1G18AC-TJ Details

  • Manufacturer Part Number:

    MX30LF1G18AC-TJ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSOP1-48

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Macronix International Co Ltd

  • YTEOL:

    4

  • JESD-30 Code:

    R-PDSO-G48

  • Length:

    18.4 mm

  • Memory Density:

    1073741824 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Words:

    134217728 words

  • Number of Words Code:

    128000000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128MX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Type:

    SLC NAND TYPE

  • Width:

    12 mm

MX30LF1G18AC-TJ Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MX30LF1G18AC-TJ is 2.7V to 3.6V.
  • The hold pin (HOLD#) should be pulled high during power-up and power-down sequences to prevent unwanted writes or erases.
  • The MX30LF1G18AC-TJ supports up to 100,000 erase cycles per sector.
  • The device density and organization can be determined by reading the device ID and manufacturer ID, which can be accessed through the JEDEC ID command (0x9F).
  • The write protection pin (WP#) is used to prevent accidental writes or erases to the device. When WP# is low, the device is write-protected.
