MX30LF4G28AD-TI - Macronix

Description: SLC NAND Flash Parallel 3V/3.3V 4G-bit 512M x 8 25ns 48-Pin TSOP-I

Download MX30LF4G28AD-TI Model

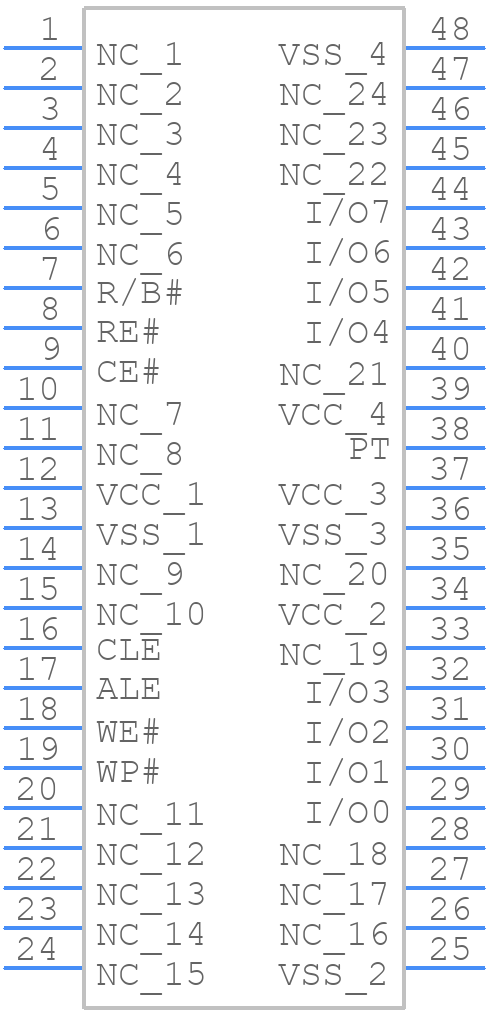

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MX30LF4G28AD-TI - Macronix PCB footprint - Small Outline Packages - Small Outline Packages - 48-TSOP(I) (12mm x 20mm)_2023
click to zoom
3D Models
MX30LF4G28AD-TI - Macronix  - 3D model - Small Outline Packages - 48-TSOP(I) (12mm x 20mm)_2023
click to zoom

MX30LF4G28AD-TI Details

  • Manufacturer Part Number:

    MX30LF4G28AD-TI

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSOP-48

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Macronix International Co Ltd

  • YTEOL:

    4

  • Command User Interface:

    NO

  • Data Polling:

    NO

  • Data Retention Time-Min:

    10

  • Endurance:

    60000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G48

  • Length:

    18.4 mm

  • Memory Density:

    4294967296 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Sectors/Size:

    2K

  • Number of Terminals:

    48

  • Number of Words:

    536870912 words

  • Number of Words Code:

    512000000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    512MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP1

  • Package Equivalence Code:

    TSSOP48,.8,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Page Size:

    4K words

  • Parallel/Serial:

    PARALLEL

  • Programming Voltage:

    3 V

  • Ready/Busy:

    YES

  • Seated Height-Max:

    1.2 mm

  • Sector Size:

    256K

  • Standby Current-Max:

    0.00005 A

  • Supply Current-Max:

    0.05 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Toggle Bit:

    NO

  • Type:

    SLC NAND TYPE

  • Width:

    12 mm

  • Write Cycle Time-Max (tWC):

    0.00002 ms

MX30LF4G28AD-TI Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MX30LF4G28AD-TI is 2.7V to 3.6V.
  • The hold and WP pins should be pulled high during power-up and power-down sequences to prevent any accidental writes or erases.
  • The MX30LF4G28AD-TI supports up to 100,000 erase cycles.
  • The optimal write endurance depends on the specific application requirements. A general guideline is to limit the number of writes to 10,000 to 20,000 cycles for most applications.
  • The recommended method is to use the RY/BY# pin, which goes low during a write or erase operation and goes high when the operation is complete.
