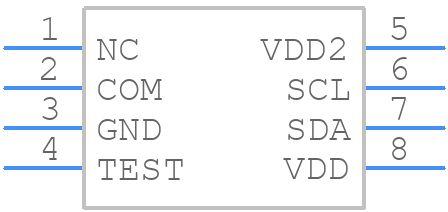

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MXC62320MP
- Part Number MXC62320MP
- Manufacturer MEMSIC
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - MXC62320MP
- Released Date Jun 27, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MXC62320MP Details
-
Manufacturer Part Number:
MXC62320MP
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
LCC-8
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Memsic Inc
-
YTEOL:
0
-
Analog IC - Other Type:
ANALOG CIRCUIT
-
JESD-30 Code:
S-XQCC-N8
-
Length:
5 mm
MXC62320MP Frequently Asked Questions (FAQs)
-
Memsic Inc provides a recommended PCB layout and land pattern in their application note AN-00MX-001, which can be found on their website. It's essential to follow this layout to ensure proper thermal management and minimize noise.
-
The MXC62320MP does not require calibration in the classical sense. However, it's recommended to perform a zero-g offset calibration by taking the average of the acceleration readings in all three axes when the device is at rest. This can be done during the manufacturing process or in the field.
-
Although the datasheet specifies an operating temperature range of -40°C to 85°C, Memsic Inc recommends derating the device for extended operation above 70°C to ensure reliability and accuracy.
-
Yes, the MXC62320MP is designed to operate in high-vibration environments. However, it's essential to ensure that the device is properly mounted and secured to prevent mechanical stress, which can affect its performance and accuracy.
-
The MXC62320MP communicates via a standard I2C interface. Engineers can use a microcontroller's built-in I2C peripheral to interface with the accelerometer. Memsic Inc provides example code and application notes to facilitate the integration process.
Trust Checks
Expert Contribution
System Verified
Community Approved
MXC62320MP Overview
Use the download button to access the MXC62320MP schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MXC62,
or try a keyword search, such as Other Signal Circuits
