Part Image

MXL83438E-AGA-R - MaxLinear, Inc.

Description: RS-422/RS-485 Interface IC Quad RS485 Receiver High Performance

Download MXL83438E-AGA-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

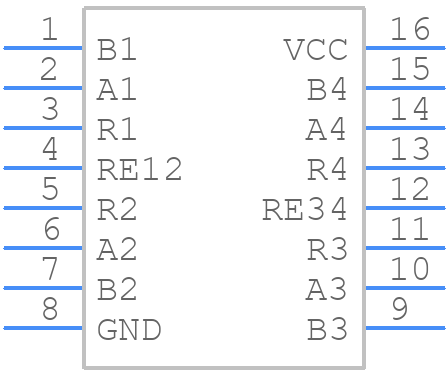

MXL83438E-AGA-R - MaxLinear, Inc. - PCB symbol
click to zoom
PCB Footprints
MXL83438E-AGA-R - MaxLinear, Inc. PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP-16
click to zoom
3D Models
MXL83438E-AGA-R - MaxLinear, Inc. - 3D model - Small Outline Packages - TSSOP-16
click to zoom

MXL83438E-AGA-R Details

  • Manufacturer Part Number:

    MXL83438E-AGA-R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    MaxLinear Inc

  • Interface IC Type:

    LINE TRANSCEIVER

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MXL83438E-AGA-R Overview

Use the download button to access the MXL83438E-AGA-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MXL83, or try a keyword search, such as Line Driver or Receivers
