A symmetrical layout with the sensor at the center, and a solid ground plane underneath the sensor is recommended. Avoid routing signals under the sensor, and keep the PCB as compact as possible.
Calibration involves applying a known acceleration to the sensor and adjusting the offset and sensitivity registers accordingly. A calibration procedure can be found in the application note AN-M-09.
The MXR7305VF can measure accelerations up to ±10g, but the maximum range can be limited by the power supply voltage and the output data rate.
The MXR7305VF is rated for operation up to 85°C, but the accuracy and stability of the sensor may degrade at higher temperatures. Consult the datasheet for temperature coefficients and compensation methods.
The MXR7305VF has a digital SPI interface. Connect the sensor's SCL and SDA pins to the microcontroller's SPI pins, and use a level shifter if necessary. Consult the datasheet for communication protocols and timing diagrams.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MXR7305VF Overview

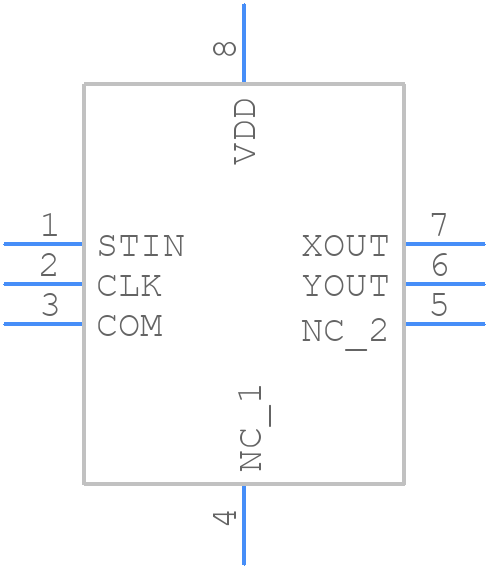

Use the download button to access the MXR7305VF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MXR73,
or try a keyword search, such as Other Signal Circuits
