MYRGP180100B21RA footprint, schematic symbol and 3D model by Murata Electronics

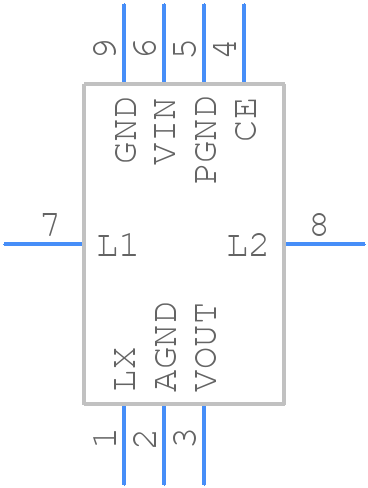

Symbol

click to zoom

PCB Footprints

MYRGP180100B21RA - Murata Electronics PCB footprint - Other - Other - MYRGP180100B21RA-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MYRGP180100B21RA
Part Number MYRGP180100B21RA
Manufacturer Murata Electronics
Pin Count 9
Part Category Power Supply
Package Category Other
Footprint Name Other - MYRGP180100B21RA-4
Released Date Nov 2, 2020
Last Modified Date Mar 30, 2024 12:34 PM UTC
Pinout / Pin List Click Here (Member Only)

MYRGP180100B21RA Details

Manufacturer Part Number:
MYRGP180100B21RA
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
SMD-8
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Date Of Intro:
2019-11-28
Manufacturer:
Murata Manufacturing Co Ltd
YTEOL:
0
Additional Feature:
ALSO HAS PFM CONTROL
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
VOLTAGE-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
5.5 V
Input Voltage-Min:
2.5 V
Input Voltage-Nom:
5 V
JESD-30 Code:
R-XQCC-N8
Length:
2.5 mm
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
1 A
Output Voltage-Max:
1.836 V
Output Voltage-Min:
1.764 V
Output Voltage-Nom:
1.8 V
Package Body Material:
UNSPECIFIED
Package Code:
QCCN
Package Equivalence Code:
LCC8,.07x.09,22
Package Shape:
RECTANGULAR
Package Style:
CHIP CARRIER
Seated Height-Max:
1.04 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
3000 kHz
Technology:
HYBRID
Terminal Form:
NO LEAD
Terminal Pitch:
0.55 mm
Terminal Position:
QUAD
Width:
2 mm

MYRGP180100B21RA Frequently Asked Questions (FAQs)

Murata recommends a land pattern with a pad size of 2.5mm x 1.5mm, and a spacing of 1.5mm between pads. The recommended land pattern is available in the Murata Land Pattern Guide.
The MYRGP180100B21RA is rated for operation up to 125°C, but it's recommended to derate the component's power handling at high temperatures. Consult the datasheet and Murata's application notes for more information.
Yes, the MYRGP180100B21RA is compatible with lead-free soldering processes, such as SnAgCu (SAC) and SnCu. However, it's essential to follow the recommended soldering profile and temperature guidelines to ensure reliable assembly.
The typical tolerance for the inductance value of the MYRGP180100B21RA is ±10%. However, it's essential to check the specific tolerance for the particular batch or lot number, as it may vary.
The MYRGP180100B21RA is designed for high-frequency applications up to 1 GHz. However, it's essential to consider the component's self-resonant frequency, Q factor, and impedance characteristics when designing high-frequency circuits.
