MYTNC1R84RELA2RA - Murata Electronics

Description: Non-Isolated DC/DC Converters 4A 6-14.4Vin 0.7-1.8Vout LGA I2C

Download MYTNC1R84RELA2RA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

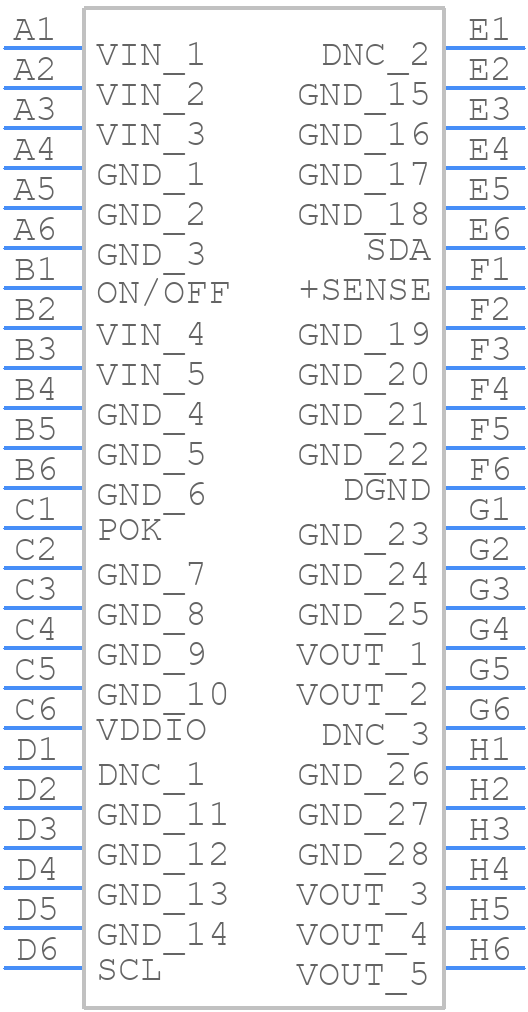

MYTNC1R84RELA2RA - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

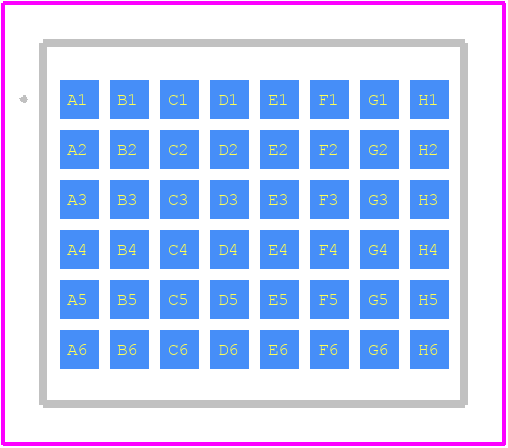

MYTNC1R84RELA2RA - Murata Electronics PCB footprint - Other - Other - 10.5 x 9.0 x 2.1mm LGA_2024
click to zoom
3D Models
MYTNC1R84RELA2RA - Murata Electronics - 3D model - Other - 10.5 x 9.0 x 2.1mm LGA_2024
click to zoom

MYTNC1R84RELA2RA Details

  • Manufacturer Part Number:

    MYTNC1R84RELA2RA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LGA-48

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Efficiency (Main Output):

    90.5%

  • Input Voltage-Max:

    14.4 V

  • Input Voltage-Min:

    6 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XBGA-N48

  • Length:

    10.5 mm

  • Line Regulation-Max:

    1%

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4 A

  • Output Voltage-Max:

    1.8 V

  • Output Voltage-Min:

    0.7 V

  • Output Voltage-Nom:

    0.7 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    LGA

  • Package Equivalence Code:

    LGA48,6X8(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Packing Method:

    TR, 13 INCH

  • Seated Height-Max:

    2.1 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    BOTTOM

  • Total Power Output-Max:

    2.8 W

  • Trim/Adjustable Output:

    NO

  • Width:

    9 mm

MYTNC1R84RELA2RA Frequently Asked Questions (FAQs)

  • Murata recommends a land pattern with a pad size of 2.5mm x 1.25mm, with a non-solder mask defined (NSMD) pad and a minimum clearance of 0.5mm from the component body to ensure reliable soldering and to prevent solder bridging.
  • Handle the component by the edges or the body, avoiding touching the terminals or the ceramic body to prevent damage from electrostatic discharge (ESD). Use an ESD wrist strap or mat, and ensure the assembly area is ESD-protected.
  • The maximum allowable voltage derating for the MYTNC1R84RELA2RA is 80% of the rated voltage. Exceeding this derating may reduce the component's reliability and lifespan.
  • The MYTNC1R84RELA2RA is rated for operation up to 125°C. However, it's recommended to derate the voltage and current according to the temperature derating curve provided in the datasheet to ensure reliable operation.
  • Store the MYTNC1R84RELA2RA in its original packaging, away from direct sunlight, moisture, and extreme temperatures. The recommended storage conditions are -30°C to 40°C and 60% relative humidity or less.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MYTNC1R84RELA2RA Overview

Use the download button to access the MYTNC1R84RELA2RA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MYTNC, or try a keyword search, such as Power Supply Modules

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
