N10214-5212PC - 3M

Description: D-Sub Micro-D Connectors 14P R/A SHLD RECEPT BOARDMNT M2.5 THREAD

Download N10214-5212PC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
N10214-5212PC - 3M - PCB symbol
click to zoom
PCB Footprints

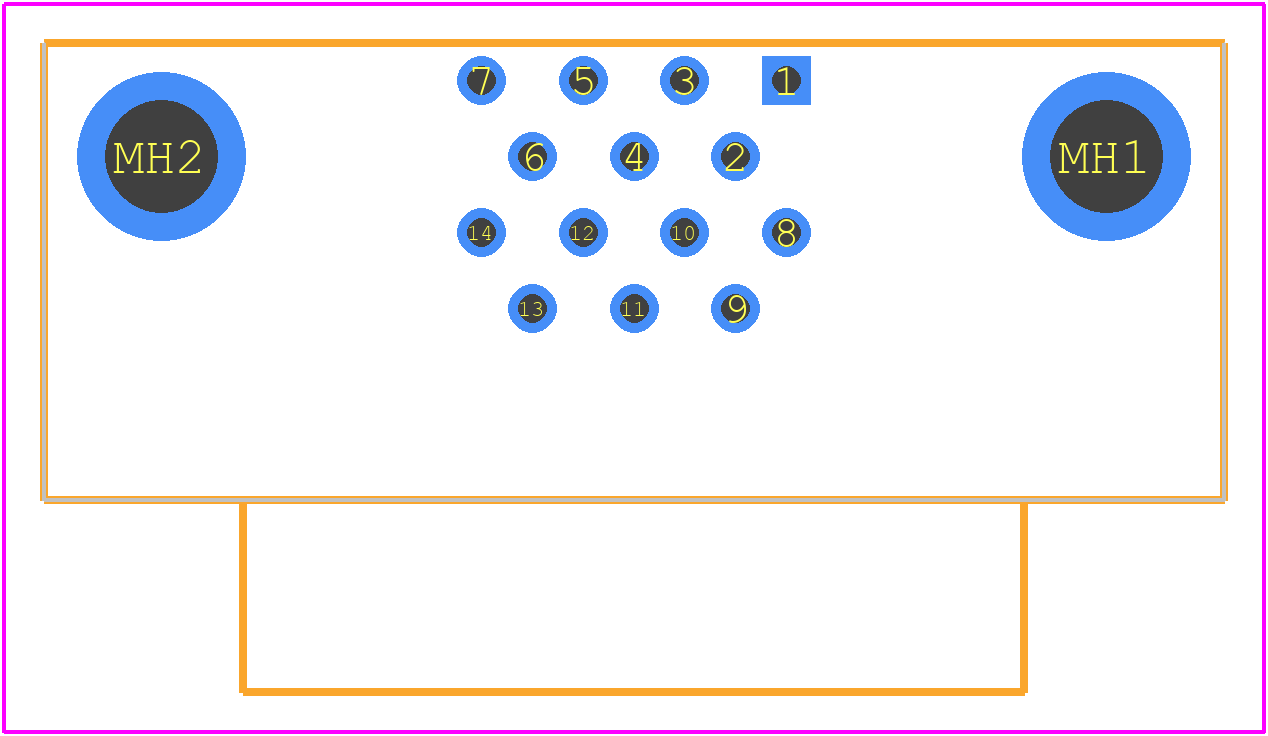

N10214-5212PC - 3M PCB footprint - Other - Other - N10214-5212PC-1
click to zoom
3D Models
N10214-5212PC - 3M - 3D model - Other - N10214-5212PC-1
click to zoom

N10214-5212PC Details

  • Manufacturer Part Number:

    N10214-5212PC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    6.8

  • Connector Type:

    RIBBON D CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO
