N24C02UDTG - onsemi

Description: 1.7 V / 1.6 V to 5.5 V Supply Voltage Range; 16−Byte Page Write Buffer; Fast Write Time (4 ms max); Hardware Write Protection for Entire Memory; Schmitt Triggers and Noise Suppression Filters on I2C Bus Inputs (SCL and SDA); More than 1,000,000 Program/Erase Cycles; 100 Year Data Retention; Industrial and Automotive Grade 1 Temperature Range; US 8−Lead Package; These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Download N24C02UDTG Model

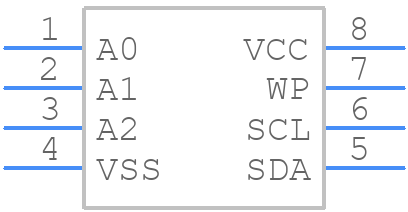

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
N24C02UDTG - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - US8 US SUFFIIX CASE 493-02 ISSUE B
click to zoom
3D Models
N24C02UDTG - onsemi  - 3D model - Small Outline Packages - US8 US SUFFIIX CASE 493-02 ISSUE B
click to zoom

N24C02UDTG Details

  • Manufacturer Part Number:

    N24C02UDTG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    US8

  • Package Description:

    SOP-8

  • Manufacturer Package Code:

    493-01

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Additional Feature:

    IT ALSO OPERATES AT -20DEGCEN TO +85DEGCEN, 1.6V VCC(MIN) FOR READ OPERATIONS

  • Clock Frequency-Max (fCLK):

    1 MHz

  • Data Retention Time-Min:

    100

  • Endurance:

    1000000 Write/Erase Cycles

  • I2C Control Byte:

    1010DDDR

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    2.3 mm

  • Memory Density:

    2048 bit

  • Memory IC Type:

    EEPROM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    256 words

  • Number of Words Code:

    256

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    256X8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSSOP8,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Programming Voltage:

    3.3 V

  • Seated Height-Max:

    0.9 mm

  • Serial Bus Type:

    I2C

  • Standby Current-Max:

    0.000001 A

  • Supply Current-Max:

    0.0005 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Gold/Palladium (Ni/Au/Pd)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

  • Write Cycle Time-Max (tWC):

    4 ms

  • Write Protection:

    HARDWARE
