N25Q256A11E1240F - Micron

Description: NOR Flash Serial-SPI 1.8V 256Mbit 256M/128M/64M x 1bit/2bit/4bit 8ns 24-Pin TBGA T/R

Download N25Q256A11E1240F Model

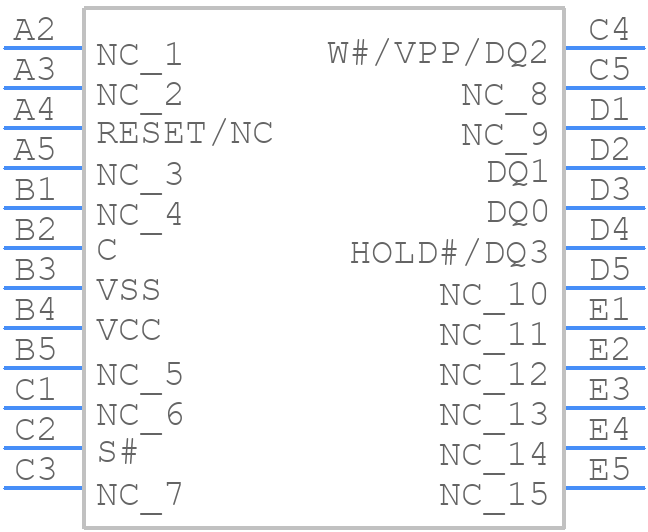

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
N25Q256A11E1240F - Micron PCB footprint - BGA - BGA - T-PBGA-24b05 6mm x 8mm
click to zoom
3D Models
N25Q256A11E1240F - Micron  - 3D model - BGA - T-PBGA-24b05 6mm x 8mm
click to zoom

N25Q256A11E1240F Details

  • Manufacturer Part Number:

    N25Q256A11E1240F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TBGA-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Micron Technology Inc

  • YTEOL:

    0

  • Clock Frequency-Max (fCLK):

    108 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PBGA-B24

  • JESD-609 Code:

    e1

  • Length:

    8 mm

  • Memory Density:

    268435456 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Words:

    33554432 words

  • Number of Words Code:

    32000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    32MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TBGA

  • Package Equivalence Code:

    BGA24,5X5,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    1.8 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.00002 A

  • Supply Current-Max:

    0.02 mA

  • Supply Voltage-Max (Vsup):

    2 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN SILVER COPPER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Type:

    NOR TYPE

  • Width:

    6 mm

  • Write Protection:

    HARDWARE/SOFTWARE

N25Q256A11E1240F Frequently Asked Questions (FAQs)

  • The N25Q256A11E1240F supports up to 100,000 erase cycles.
  • The N25Q256A11E1240F uses a page-based programming and erasure scheme, where each page is 256 bytes. The device can program and erase pages independently.
  • The Write Enable Latch (WEL) signal is used to enable or disable write operations to the device. When WEL is high, the device is in write mode, and when WEL is low, the device is in read mode.
  • The N25Q256A11E1240F has a built-in power-on reset circuit that initializes the device to a known state after power-up. The device also has a reset pin that can be used to reset the device externally.
  • The recommended operating voltage range for the N25Q256A11E1240F is 2.7V to 3.6V.
