N2880-AL Frequently Asked Questions (FAQs)

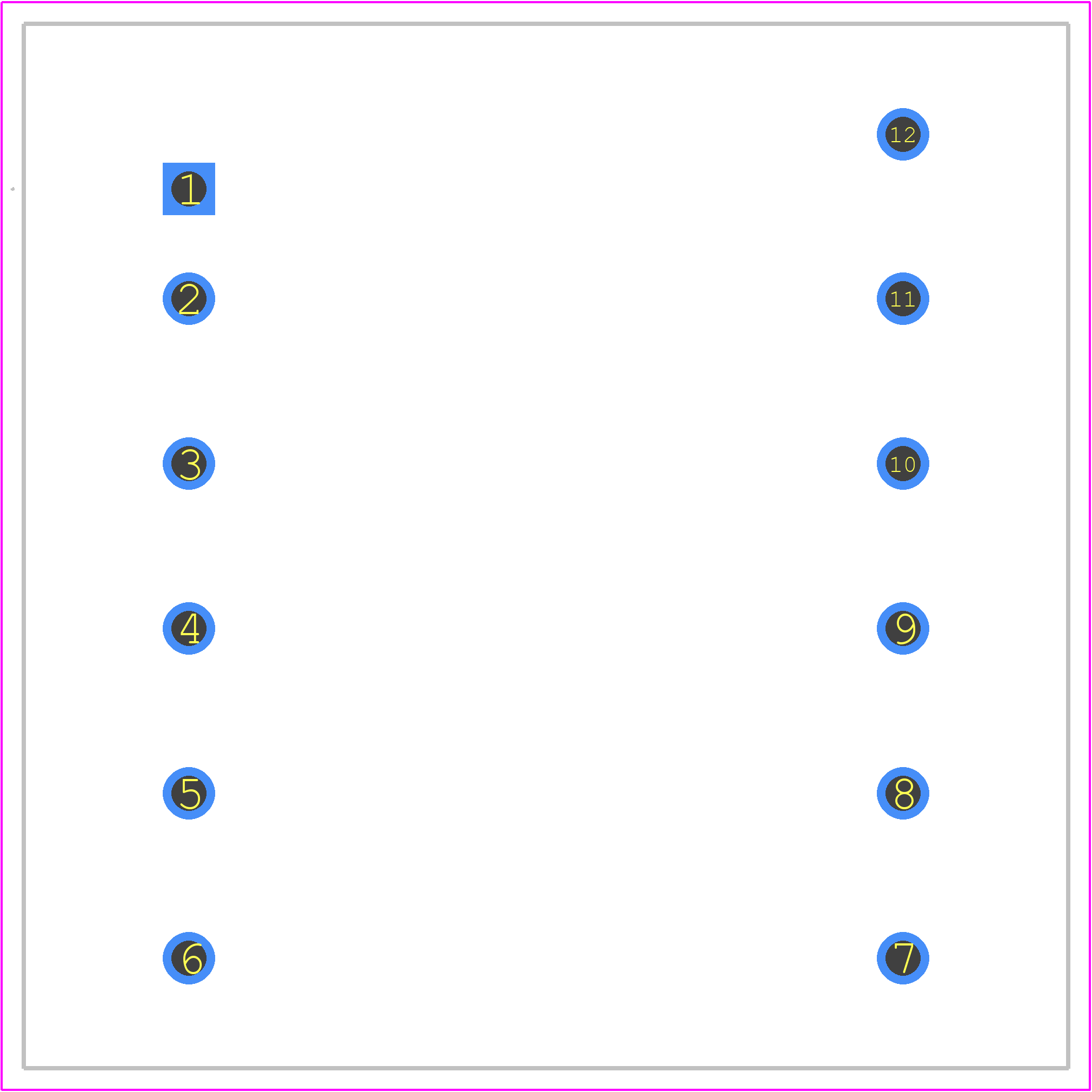

• What is the recommended land pattern for the N2880-AL?
  Coilcraft provides a recommended land pattern for the N2880-AL in their documentation. It's essential to follow this pattern to ensure proper soldering and to prevent thermal and mechanical stress on the component.
• How do I handle the N2880-AL's sensitivity to mechanical stress?
  To minimize the risk of mechanical stress, handle the N2880-AL by the body, avoid bending or flexing the leads, and use a pick-and-place machine or a vacuum pickup tool during assembly. Also, ensure that the PCB is properly supported during reflow soldering.
• What is the maximum allowable voltage for the N2880-AL?
  Although the datasheet doesn't specify a maximum voltage rating, Coilcraft recommends derating the voltage based on the operating frequency and temperature. As a general guideline, the maximum allowable voltage is around 1.5 to 2 times the rated voltage, but it's essential to consult with Coilcraft or a qualified engineer for specific applications.
• How does the N2880-AL's core material affect its performance?
  The N2880-AL uses a ferrite core material, which provides a high saturation point, low core loss, and good temperature stability. However, ferrite cores can exhibit non-linear behavior at high frequencies or high currents, which may affect the inductor's performance. It's crucial to consider these factors when designing with the N2880-AL.
• Can I use the N2880-AL in a high-temperature environment?
  The N2880-AL is rated for operation up to 125°C, but its performance may degrade at higher temperatures. Coilcraft recommends derating the inductor's current rating and considering the temperature coefficient of inductance (TCIL) when operating in high-temperature environments.
