N3627-5203RB - 3M

Description: Headers & Wire Housings BOARDMT HDR 24P

Download N3627-5203RB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

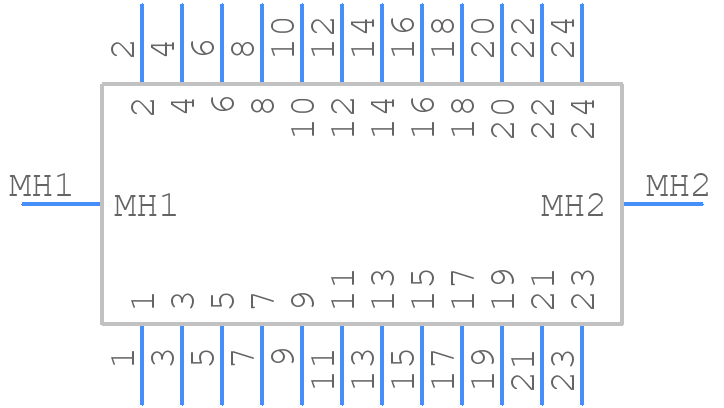

Symbol
N3627-5203RB - 3M - PCB symbol
click to zoom

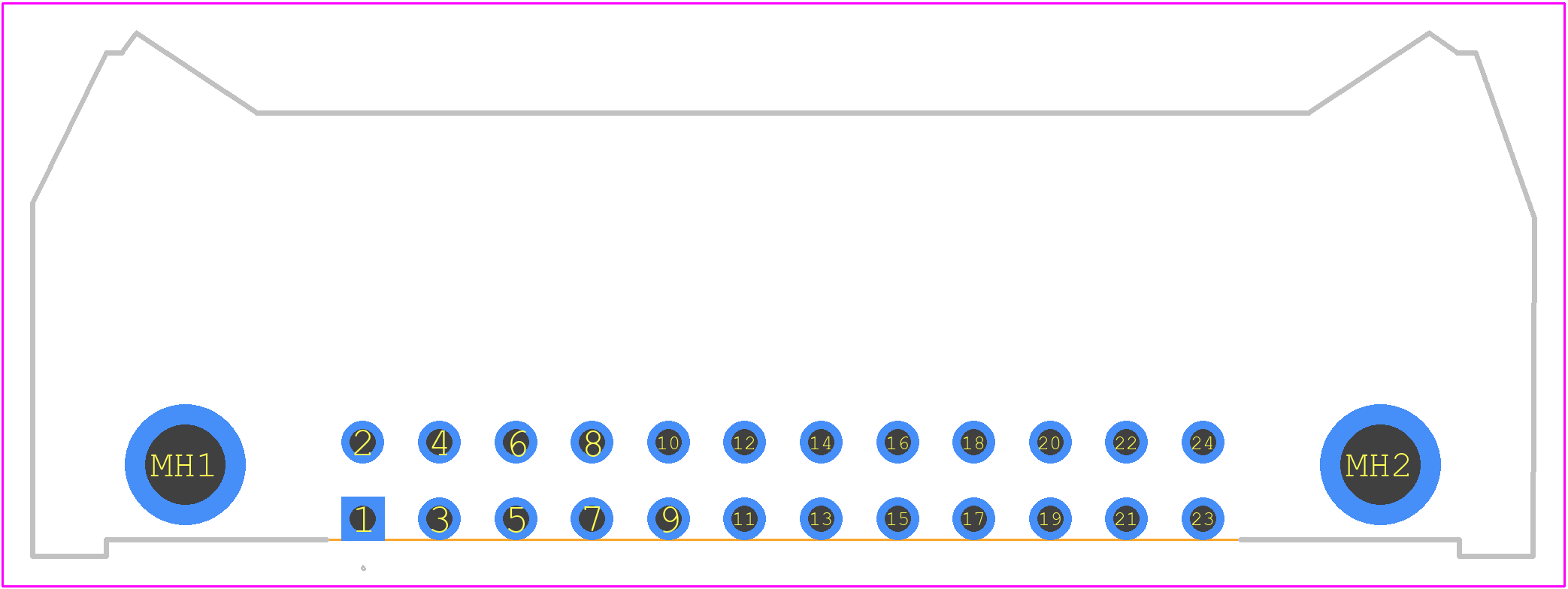

PCB Footprints
N3627-5203RB - 3M PCB footprint - Other - Other - N3627-5203RB-3
click to zoom
3D Models
N3627-5203RB - 3M - 3D model - Other - N3627-5203RB-3
click to zoom

N3627-5203RB Details

  • Manufacturer Part Number:

    N3627-5203RB

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    9.1

  • Additional Feature:

    3M, LATCHED, POLARIZED

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    MATTE TIN OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    24

  • UL Flammability Code:

    94V-0

N3627-5203RB Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the N3627-5203RB is designed to withstand high-vibration environments. The connector's screw terminals and rugged construction make it suitable for use in applications with intense vibration, such as in industrial or transportation systems.
  • The N3627-5203RB has a IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to ensure the connector is properly sealed and protected from environmental factors to maintain its performance and longevity.
  • The N3627-5203RB has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
  • While the N3627-5203RB is designed for use with 20 AWG wire, it can accommodate wire sizes between 18 AWG and 22 AWG. However, it's essential to ensure the wire size and insulation meet the connector's specifications to maintain reliable connections.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

N3627-5203RB Overview

Use the download button to access the N3627-5203RB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like N3627, or try a keyword search, such as Headers and Edge Type Connectors
