N7E50-D516PG-30 footprint, schematic symbol and 3D model by 3M

Symbol

click to zoom

PCB Footprints

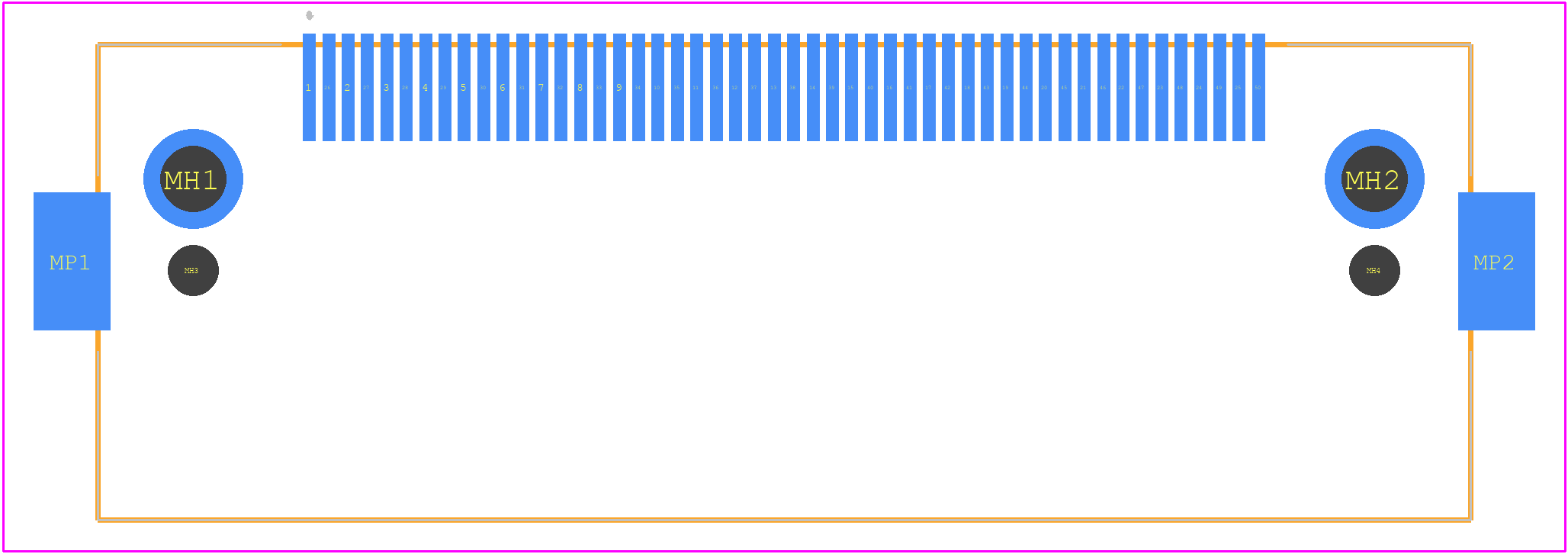

N7E50-D516PG-30 - 3M PCB footprint - Other - Other - N7E50-D516PG-30-1

click to zoom

3D Models

N7E50-D516PG-30 - 3M - 3D model - Other - N7E50-D516PG-30-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for N7E50-D516PG-30
Part Number N7E50-D516PG-30
Manufacturer 3M
Pin Count 54
Part Category Connector
Package Category Other
Footprint Name Other - N7E50-D516PG-30-1
Released Date Dec 17, 2020
Last Modified Date Apr 15, 2024 4:18 PM UTC
Pinout / Pin List Click Here (Member Only)

N7E50-D516PG-30 Details

Manufacturer Part Number:
N7E50-D516PG-30
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
19 Weeks, 4 Days
Manufacturer:
3M Interconnect
YTEOL:
5.5
Additional Feature:
COMPACTFLASH
Connector Type:
PCMCIA CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
GOLD FLASH OVER NICKEL
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e4
MIL Conformance:
NO
Mixed Contacts:
YES
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Terminal Pitch:
0.635 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
50
UL Flammability Code:
94V-0

N7E50-D516PG-30 Frequently Asked Questions (FAQs)

The recommended torque value is 0.5-1.5 Nm (4-12 in-lbs) for the screw locks.
Yes, the N7E50-D516PG-30 is designed to withstand high-vibration environments, but it's recommended to follow the mounting instructions and torque specifications to ensure reliable performance.
The operating temperature range for the N7E50-D516PG-30 is -40°C to 125°C (-40°F to 257°F).
The N7E50-D516PG-30 has a sealed design and is suitable for use in harsh environments, but it's recommended to follow the manufacturer's guidelines for environmental exposure and to ensure proper sealing and protection.
The N7E50-D516PG-30 is designed to be compatible with other 3M Interconnect products, but compatibility with other manufacturers' mating connectors is not guaranteed and may require additional testing and validation.

Trust Checks

Expert Contribution

System Verified

Community Approved

N7E50-D516PG-30 Overview

Use the download button to access the N7E50-D516PG-30 schematic symbol, PCB footprint, and 3D model.
