N7E50-D516PK-30 - 3M

Description: Conn Compact Flash Card HDR 50 POS 0.635mm Solder RA SMD 0.5A-1

Download N7E50-D516PK-30 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
N7E50-D516PK-30 - 3M - PCB symbol
click to zoom
PCB Footprints

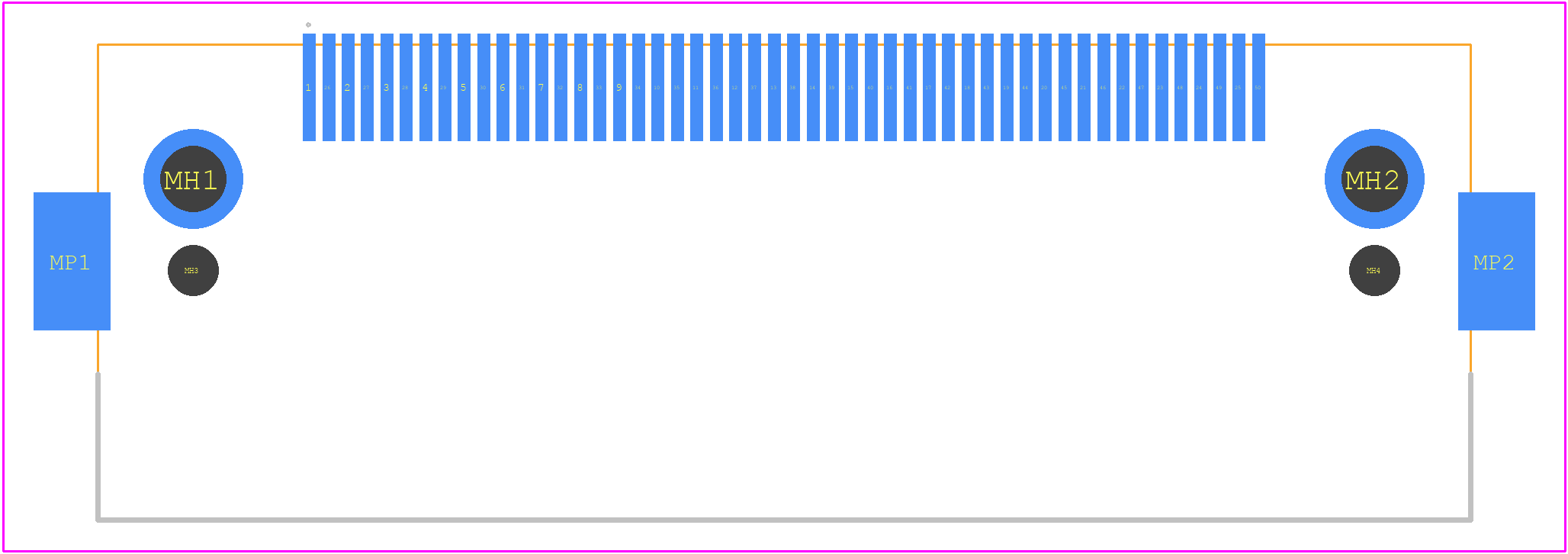

N7E50-D516PK-30 - 3M PCB footprint - Other - Other - N7E50-D516PK-30-3
click to zoom
3D Models
N7E50-D516PK-30 - 3M - 3D model - Other - N7E50-D516PK-30-3
click to zoom

N7E50-D516PK-30 Details

  • Manufacturer Part Number:

    N7E50-D516PK-30

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    19 Weeks, 4 Days

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    5.5

  • Additional Feature:

    COMPACTFLASH

  • Connector Type:

    PCMCIA CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD FLASH OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    YES

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.635 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    50

  • UL Flammability Code:

    94V-0
