N7E50-M516RB-50-WF - 3M

Description: Memory Card Connectors CRD HDR 2mm STANDOFF SMT CF II 30u GLD

Download N7E50-M516RB-50-WF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
N7E50-M516RB-50-WF - 3M - PCB symbol
click to zoom
PCB Footprints

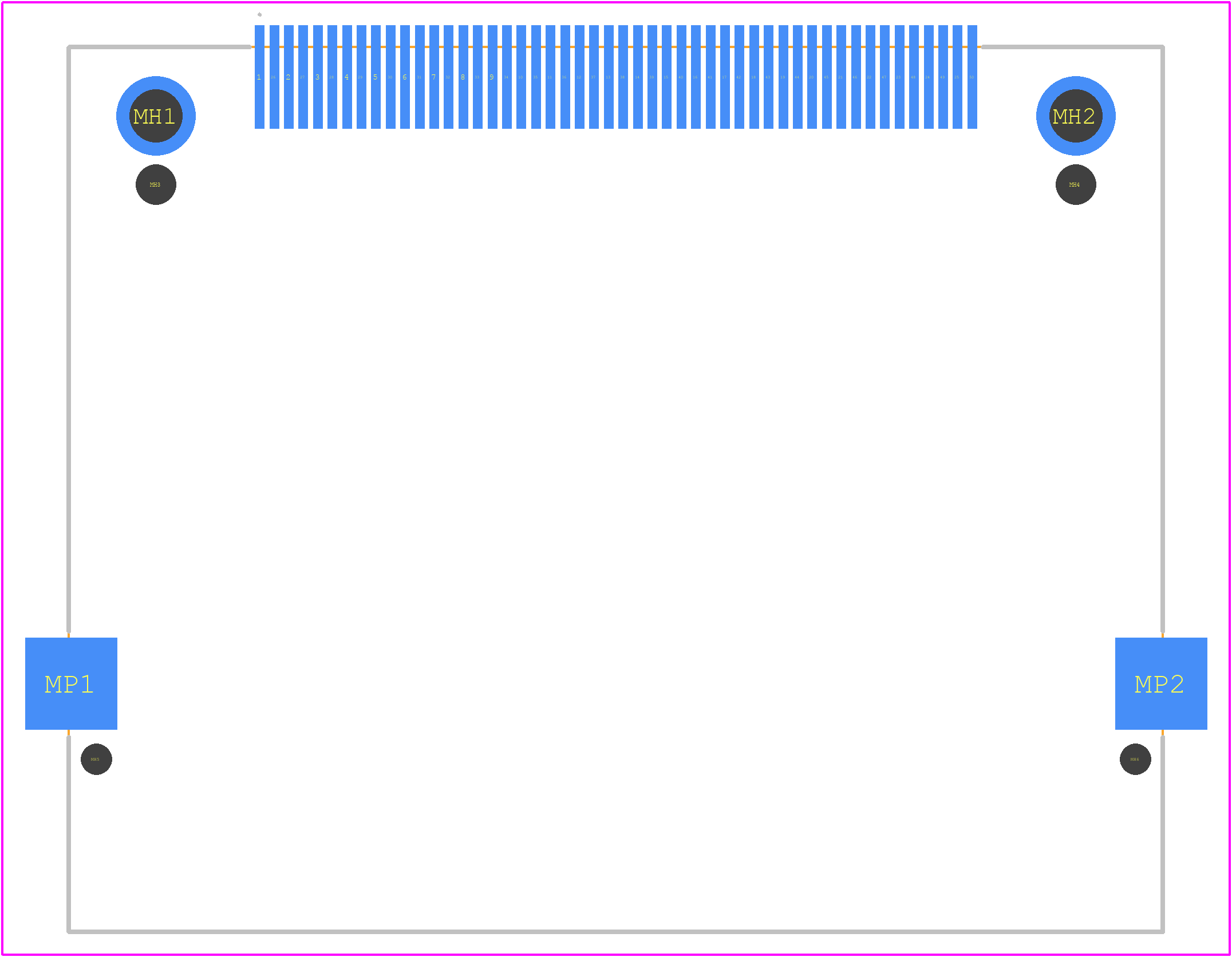

N7E50-M516RB-50-WF - 3M PCB footprint - Other - Other - N7E50-M516RB-50-WF-2
click to zoom
3D Models
N7E50-M516RB-50-WF - 3M - 3D model - Other - N7E50-M516RB-50-WF-2
click to zoom

N7E50-M516RB-50-WF Details

  • Manufacturer Part Number:

    N7E50-M516RB-50-WF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks, 1 Day

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    5.5

  • Additional Feature:

    3M, COMPACTFLASH, POLARIZED

  • Connector Type:

    PCMCIA CONNECTOR

  • Contact Finish Mating:

    GOLD (30) OVER NICKEL (80)

  • Contact Finish Termination:

    MATTE TIN OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    YES

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    50

  • UL Flammability Code:

    94V-0

N7E50-M516RB-50-WF Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-1.5 Nm (4.4-13.4 in-lbs) for the screw locks on the N7E50-M516RB-50-WF connector.
  • Yes, the N7E50-M516RB-50-WF connector is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for vibration testing and to ensure proper mounting and screw torque.
  • Yes, the N7E50-M516RB-50-WF connector is designed to be compatible with other 3M Interconnect products, including cable assemblies and adapters, but it's recommended to verify compatibility before use.
  • The operating temperature range for the N7E50-M516RB-50-WF connector is -40°C to 125°C (-40°F to 257°F), but it's recommended to consult the datasheet for specific temperature ratings for your application.
  • The N7E50-M516RB-50-WF connector is designed to be resistant to moisture and chemicals, but it's recommended to consult the datasheet and manufacturer's guidelines for specific environmental ratings and to ensure proper sealing and protection.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

N7E50-M516RB-50-WF Overview

Use the download button to access the N7E50-M516RB-50-WF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like N7E50, or try a keyword search, such as Headers and Edge Type Connectors
