N7E50-M516RB-50 - 3M

Description: Memory Card Connectors COMPACT FLASH TYPE II 3M CF Card Header CompactFlash Type I, Low Profile, Long Guides, SMT, Inverse

Download N7E50-M516RB-50 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
N7E50-M516RB-50 - 3M - PCB symbol
click to zoom
PCB Footprints

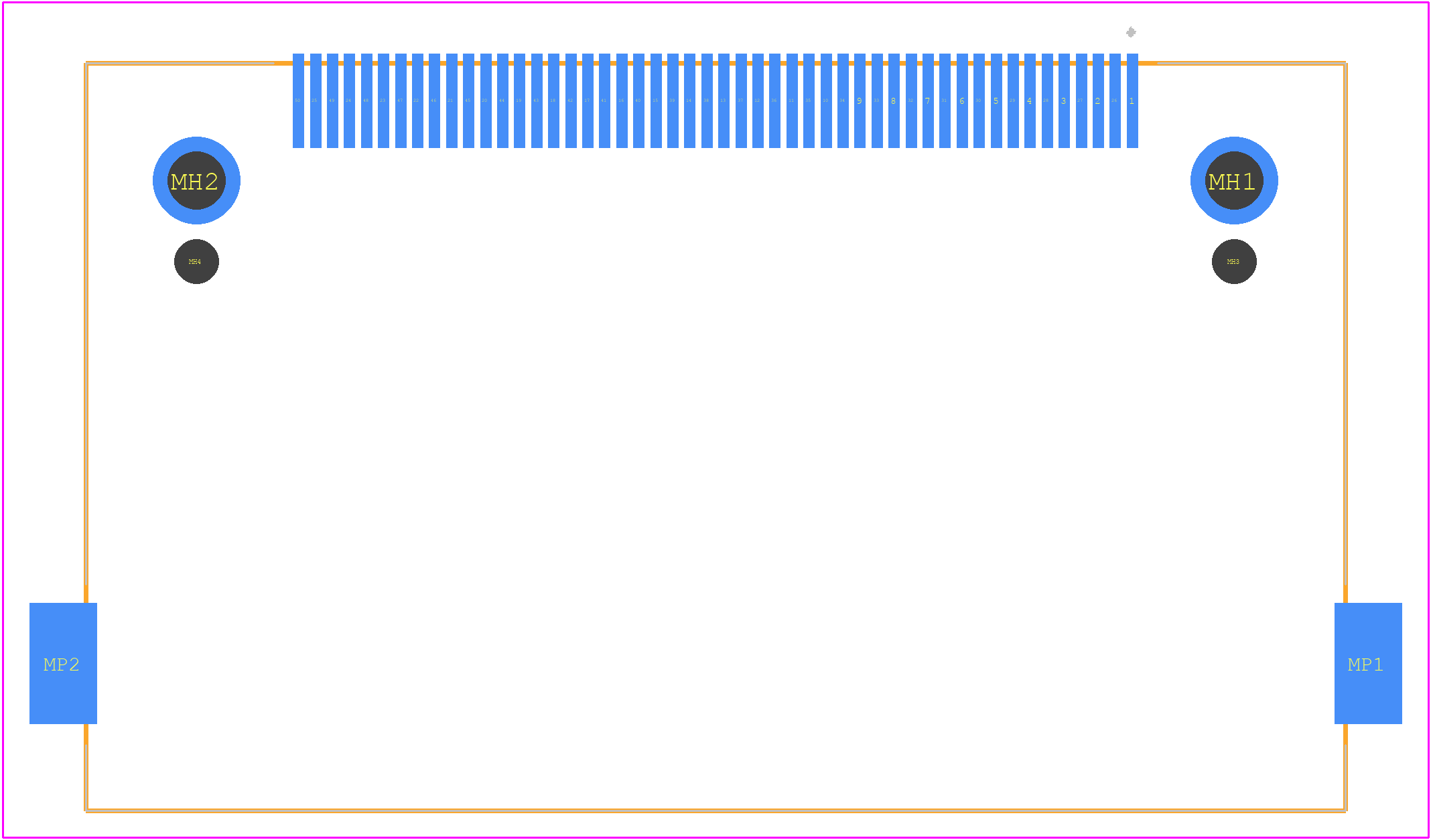

N7E50-M516RB-50 - 3M PCB footprint - Other - Other - N7E50-M516RB-50-4
click to zoom
3D Models
N7E50-M516RB-50 - 3M - 3D model - Other - N7E50-M516RB-50-4
click to zoom

N7E50-M516RB-50 Details

  • Manufacturer Part Number:

    N7E50-M516RB-50

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    14 Weeks, 4 Days

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    5.5

  • Additional Feature:

    COMPACTFLASH, POLARIZED

  • Connector Type:

    PCMCIA CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    YES

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.635 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    50

  • UL Flammability Code:

    94V-0

N7E50-M516RB-50 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-1.5 Nm (4.4-13.3 in-lbs) for the screw locks on the N7E50-M516RB-50 connector.
  • Yes, the N7E50-M516RB-50 connector is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for vibration testing and to ensure proper mounting and screw torque.
  • The maximum operating temperature for the N7E50-M516RB-50 connector is 125°C (257°F), but it's recommended to derate the connector's performance at temperatures above 100°C (212°F).
  • The N7E50-M516RB-50 connector is designed to be resistant to moisture and chemicals, but it's recommended to follow the manufacturer's guidelines for environmental testing and to ensure proper sealing and protection.
  • The recommended mating cycle for the N7E50-M516RB-50 connector is 500-1000 cycles, depending on the application and environmental conditions.
