The operating temperature range is -40°C to 125°C, according to 3M's specifications.
Yes, the connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, automotive, and industrial equipment.
The mating cycle life is rated at 500 cycles, according to 3M's specifications, ensuring reliable connections over an extended period.
Yes, the connector is designed to be resistant to moisture, chemicals, and other environmental factors, making it suitable for use in harsh environments.
The recommended torque value is 0.5 N·m to 1.5 N·m, depending on the specific application and requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
N7G24-A0B2RB-10-0WF Overview

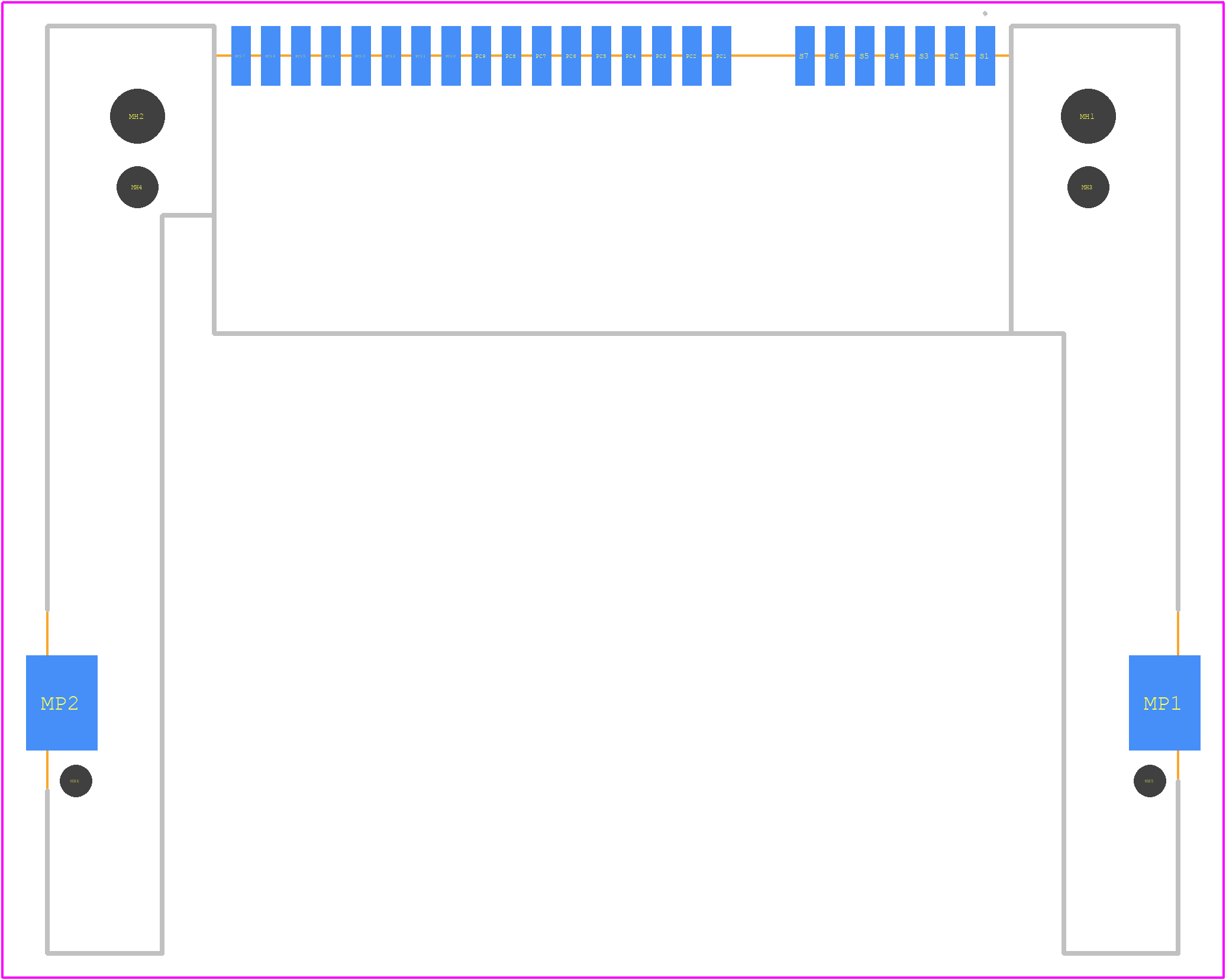

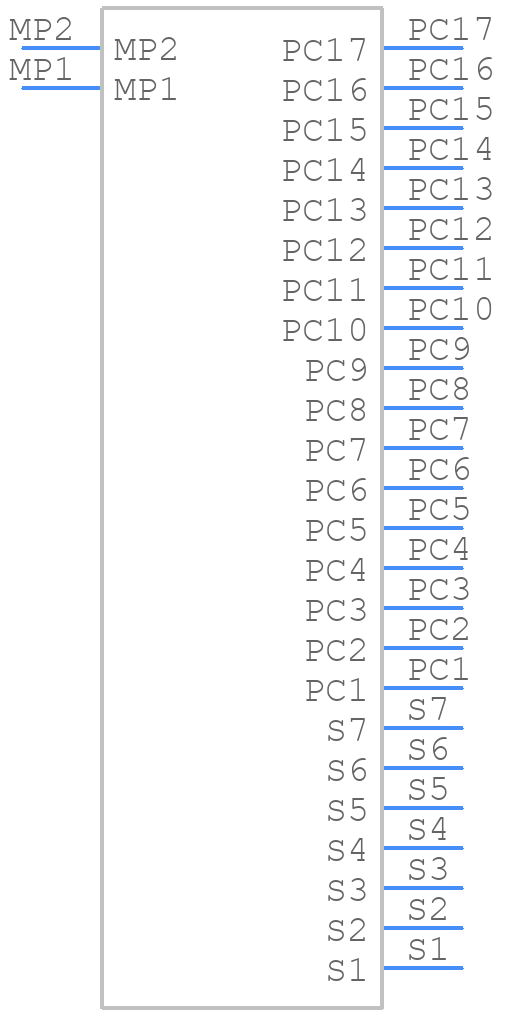

Use the download button to access the N7G24-A0B2RB-10-0WF schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like N7G24,
or try a keyword search, such as Headers and Edge Type Connectors
