NACE220M16V5X5.5TR13F - NIC Components

Description: NIC Components 22μF 16 V dc Aluminium Electrolytic Capacitor, NACE Series 2000h 5 Dia. x 5.5mm

Download NACE220M16V5X5.5TR13F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NACE220M16V5X5.5TR13F - NIC Components - PCB symbol
click to zoom
PCB Footprints

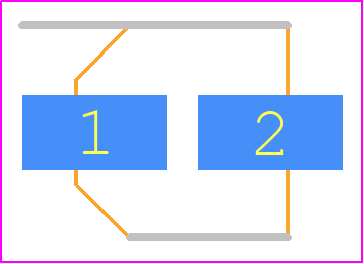

NACE220M16V5X5.5TR13F - NIC Components PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - 5*5.5_
click to zoom
3D Models
NACE220M16V5X5.5TR13F - NIC Components - 3D model - Capacitor Al Electrolytic - 5*5.5_
click to zoom

NACE220M16V5X5.5TR13F Details

  • Manufacturer Part Number:

    NACE220M16V5X5.5TR13F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    NIC Components Corp

  • YTEOL:

    6

  • Capacitance:

    22 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    5 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    12100 mΩ

  • Height:

    5.5 mm

  • JESD-609 Code:

    e6

  • Leakage Current:

    0.00352 mA

  • Length:

    5.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, 13 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    16 V

  • Ripple Current:

    39 mA

  • Size Code:

    2121

  • Surface Mount:

    YES

  • Tan Delta:

    0.16

  • Terminal Finish:

    TIN BISMUTH

  • Terminal Shape:

    FLAT

  • Width:

    5.3 mm

NACE220M16V5X5.5TR13F Frequently Asked Questions (FAQs)

  • The recommended land pattern for NACE220M16V5X5.5TR13F can be found in the NIC Components Corp's application note or by contacting their technical support team.
  • Handle the component by the body, avoid touching the leads or electrical contacts to prevent damage from static electricity or contamination. Use anti-static wrist straps, mats, or packaging to prevent ESD damage.
  • The thermal resistance of NACE220M16V5X5.5TR13F is not explicitly stated in the datasheet. However, it can be estimated based on the package type and size. For a more accurate value, contact NIC Components Corp's technical support team.
  • NACE220M16V5X5.5TR13F is a commercial-grade component. For high-reliability or aerospace applications, consider using components with specific certifications (e.g., MIL-PRF-39003) or consult with NIC Components Corp's technical support team for guidance.
  • The moisture sensitivity level (MSL) of NACE220M16V5X5.5TR13F is likely to be MSL 2 or 3, but this information is not explicitly stated in the datasheet. Consult NIC Components Corp's technical support team for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NACE220M16V5X5.5TR13F Overview

Use the download button to access the NACE220M16V5X5.5TR13F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NACE2, or try a keyword search, such as Ceramic Capacitors
