NAR131SH-F - Stanley Electric

Description: Display Modules - LED Character and Numeric Red 7-Segment 1 Character 1.9V 5mA 0.433" H x 0.276" W x 0.197" D (11.00mm x 7.00mm x 5.00mm) 10-DIP (0.209", 5.30mm)

Download NAR131SH-F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

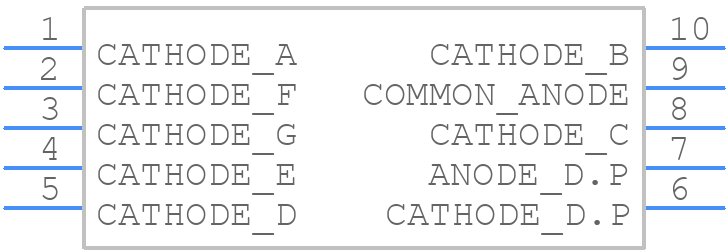

NAR131SH-F - Stanley Electric - PCB symbol
click to zoom
PCB Footprints
NAR131SH-F - Stanley Electric PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - NAR131SH-F
click to zoom
3D Models
NAR131SH-F - Stanley Electric - 3D model - Dual-In-Line Sockets - NAR131SH-F
click to zoom

NAR131SH-F Details

  • Manufacturer Part Number:

    NAR131SH-F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Stanley Electric Co

  • YTEOL:

    0

  • Color:

    SUPER BRIGHT RED

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    8 mm

  • Forward Current-Max:

    0.015 A

  • Forward Voltage-Max:

    2.4 V

  • Luminous Intensity-Min:

    0.0035 cd

  • Luminous Intensity-Nom:

    9.8 mcd

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Packing Method:

    TRAY
