NAR141SH-F footprint, schematic symbol and 3D model by Stanley Electric

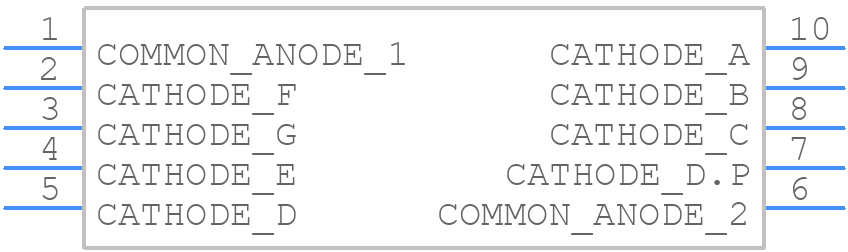

Symbol

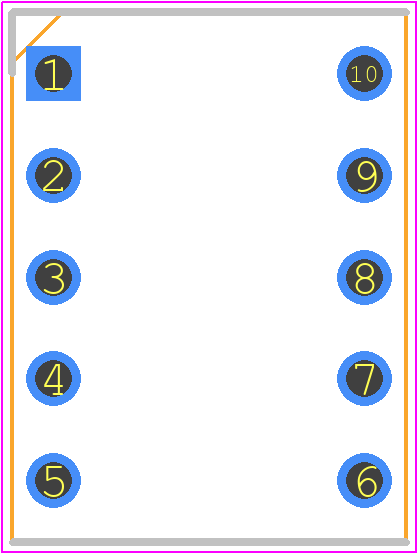

PCB Footprints

NAR141SH-F Details

The recommended storage temperature for NAR141SH-F is -20°C to 40°C (-4°F to 104°F).
Yes, NAR141SH-F is designed to operate in humid environments, but it's recommended to follow the manufacturer's guidelines for humidity levels and take necessary precautions to prevent moisture ingress.
The maximum soldering temperature for NAR141SH-F is 260°C (500°F) for 3 seconds or less.
Yes, NAR141SH-F is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the European Union's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
The typical lead time for NAR141SH-F varies depending on the supplier and the quantity ordered. It's recommended to check with the supplier or manufacturer for the most up-to-date lead time information.

Community Provided

System Verified

Community Approved

Use the download button to access the NAR141SH-F schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like NAR14, or try a keyword search, such as LED Displays
