A good PCB layout for NAU7802SGI involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure accuracy, it's essential to calibrate the scale regularly, use a high-quality load cell, and ensure proper wiring and connections. Additionally, the NAU7802SGI should be operated within its specified temperature range, and the system should be designed to minimize noise and interference.
The recommended power-up sequence for NAU7802SGI is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the clock signal. This sequence helps prevent latch-up and ensures proper device operation.
The NAU7802SGI has a built-in offset calibration feature. To perform offset calibration, apply a zero-scale input to the device, and then use the CAL_OS pin to initiate the calibration process. The device will then adjust its internal offset to compensate for any offset errors.
The NAU7802SGI can drive a maximum load capacitance of 100 pF. Exceeding this limit may affect the device's stability and performance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NAU7802SGI Overview

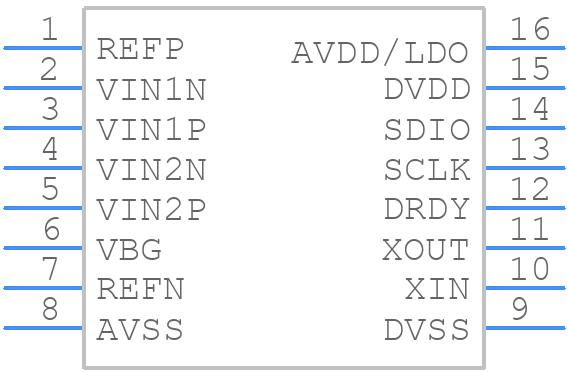

Use the download button to access the NAU7802SGI schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like NAU78,
or try a keyword search, such as Analog to Digital Converters
