A good thermal design is crucial for the NAU8315B31VG. Nuvoton recommends a 2-layer or 4-layer PCB with a thermal pad connected to a large copper area on the bottom layer. This helps to dissipate heat efficiently. Additionally, keep the surrounding components at a safe distance to ensure good airflow.
When selecting an inductor for the NAU8315B31VG, consider the following factors: inductance value, DC resistance, and saturation current. A good starting point is to use an inductor with an inductance value between 2.2 μH to 4.7 μH, a DC resistance of less than 100 mΩ, and a saturation current of at least 2 A. Consult the datasheet and application notes for more guidance.
While the datasheet specifies an operating temperature range of -40°C to 85°C, it's essential to consider the maximum ambient temperature for reliable operation. Nuvoton recommends keeping the ambient temperature below 70°C to ensure optimal performance and reliability.
To troubleshoot the NAU8315B31VG, start by verifying the input voltage, output voltage, and current. Check the PCB layout and component placement for any errors or omissions. Use an oscilloscope to monitor the switching node and output voltage. Consult the datasheet, application notes, and Nuvoton's technical support resources for further guidance.
Yes, to reduce EMI, Nuvoton recommends using a shielded inductor, placing the input and output capacitors close to the IC, and using a common-mode choke. Additionally, ensure good PCB layout practices, such as separating the power and signal traces, and using a solid ground plane.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NAU8315B31VG Overview

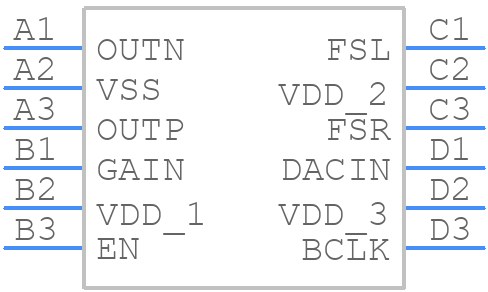

Use the download button to access the NAU8315B31VG schematic symbol, PCB footprint, and 3D model.
