NAU8315YG - Nuvoton

Description: QFN exposed thermal pad must be connected to VSS

Download NAU8315YG Model

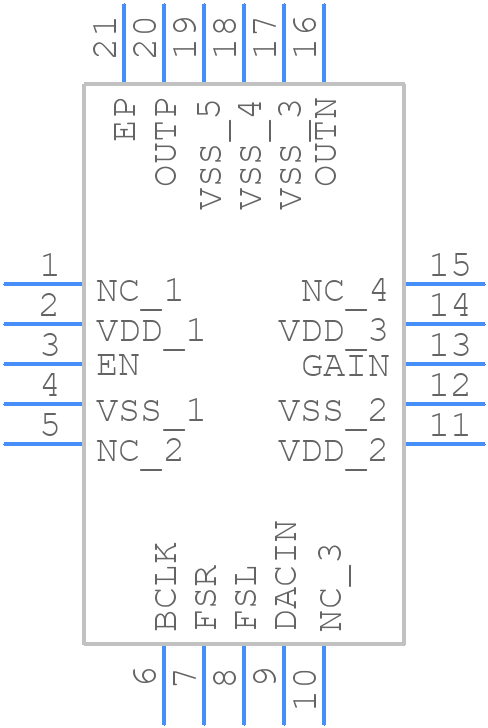

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NAU8315YG - Nuvoton PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-20
click to zoom
3D Models
NAU8315YG - Nuvoton  - 3D model - Quad Flat No-Lead - QFN-20
click to zoom

NAU8315YG Details

  • Manufacturer Part Number:

    NAU8315YG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Nuvoton Technology Corp

  • YTEOL:

    8

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    12 dB

  • JESD-30 Code:

    S-XQCC-N20

  • Length:

    4 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    3.03 W

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

NAU8315YG Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for NAU8315YG is 2.7V to 5.5V.
  • The NAU8315YG can be configured for I2C or SPI interface by setting the MODE pin high or low during power-up. For I2C, set MODE pin high, and for SPI, set MODE pin low.
  • The maximum sampling rate of the NAU8315YG is 50 ksps (kilosamples per second).
  • The NAU8315YG has an internal calibration mechanism. To calibrate, apply a known input voltage to the input pins and use the CAL pin to initiate the calibration process.
  • The typical power consumption of the NAU8315YG is 1.2 mA at 3.3V supply voltage.
