A good thermal design is crucial for the NAU8325YG. It's recommended to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. Additionally, keep the components away from the IC to ensure good airflow.
To ensure the stability of the output voltage, it's essential to use a suitable output capacitor with a low ESR (Equivalent Series Resistance). A 10uF to 22uF ceramic capacitor with an ESR of less than 1 ohm is recommended. Additionally, make sure the input voltage is within the specified range, and the output current is within the maximum rating.
The maximum junction temperature (Tj) for the NAU8325YG is 150°C. It's essential to ensure that the device operates within the recommended temperature range to prevent overheating and ensure reliability.
While the NAU8325YG can operate up to 150°C, it's not recommended to use it in high-temperature environments (above 125°C) for extended periods. The device's reliability and performance may be affected at high temperatures. If you need to operate in high-temperature environments, consider using a heat sink or a thermal management system.
To troubleshoot output voltage issues, first, check the input voltage and ensure it's within the specified range. Then, verify the output capacitor value and ESR. Check for any short circuits or overload conditions. If the issue persists, try replacing the device or consulting the application notes and datasheet for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NAU8325YG Overview

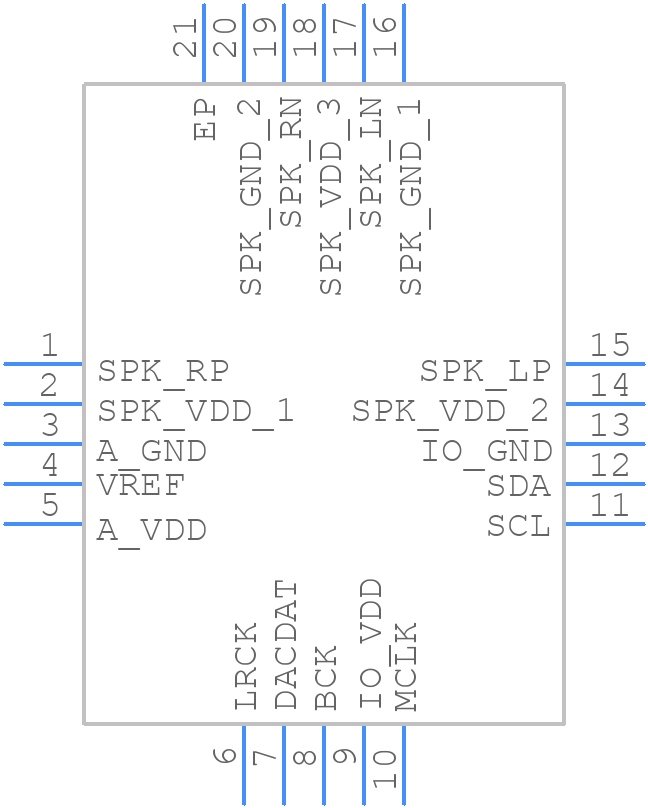

Use the download button to access the NAU8325YG schematic symbol, PCB footprint, and 3D model.
