A 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The NAU8402WG should be placed near a thermal pad or heat sink to dissipate heat efficiently.
To ensure reliable operation in high-temperature environments, it is recommended to derate the output current and voltage according to the datasheet's thermal derating curve. Additionally, ensure good airflow and thermal conduction to the heat sink or thermal pad.
For optimal performance, it is recommended to use low-ESR capacitors with a capacitance value of 10uF to 22uF for the input and output capacitors. The capacitors should be placed as close as possible to the NAU8402WG.
To troubleshoot issues with the NAU8402WG, check the input voltage, output voltage, and current. Verify that the input and output capacitors are properly connected and of the recommended value. Also, check for any signs of overheating or thermal shutdown.
Yes, the NAU8402WG is suitable for high-reliability and automotive applications. However, it is recommended to follow the datasheet's guidelines for derating, thermal management, and PCB layout to ensure reliable operation in these applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NAU8402WG Overview

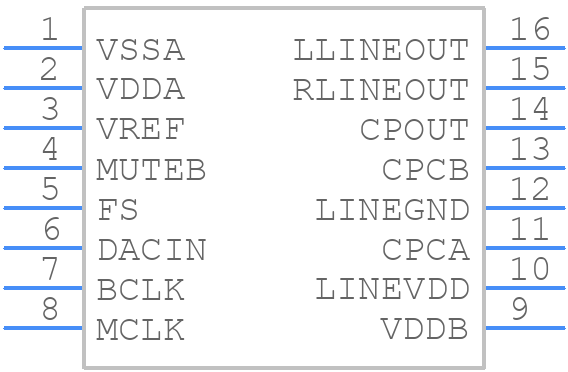

Use the download button to access the NAU8402WG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NAU84,
or try a keyword search, such as Digital to Analog Converters
