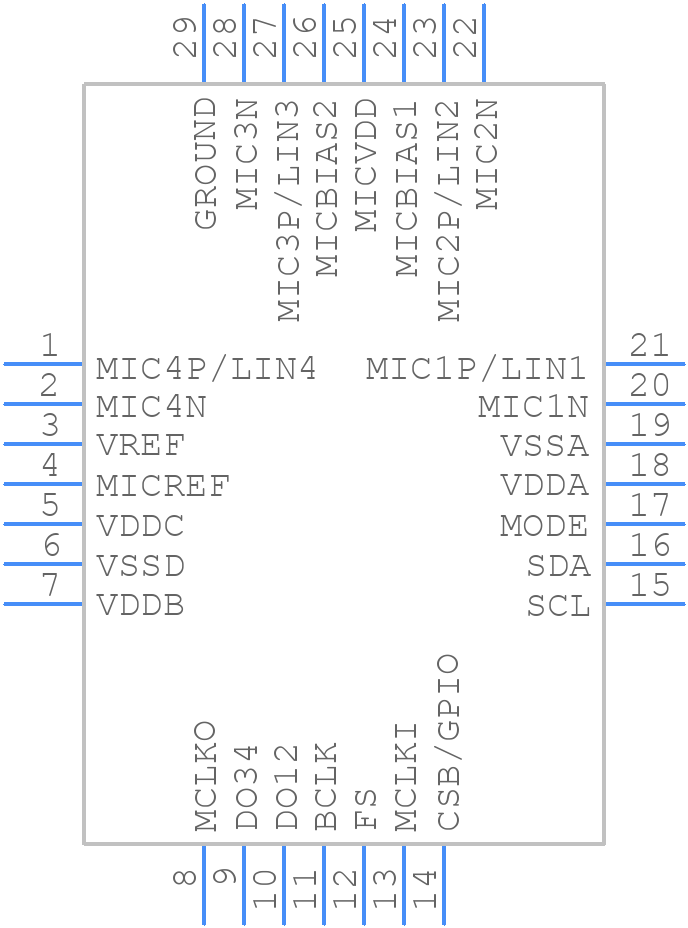

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for NAU85L40YGB
- Part Number NAU85L40YGB
- Manufacturer Nuvoton
- Pin Count 29
- Part Category Diode ESD (Uni-directional)
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - qfn-28
- Pinout / Pin List Click Here (Member Only)
Trust Checks
System Verified
NAU85L40YGB Overview
Use the download button to access the NAU85L40YGB schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like NAU85,
or try a keyword search, such as Audio Control ICs
