The recommended land pattern for NAZT102M16V12.5X14KLBF can be found in the NIC Components Corp's application note or footprint library. It typically includes a rectangular pad with a size of around 3.5mm x 2.5mm, with a 0.5mm keep-out area around the pad.
To handle thermal considerations for NAZT102M16V12.5X14KLBF, ensure good thermal conduction by using a thermal pad or via under the component, and consider using a thermal interface material (TIM) to improve heat transfer. Also, follow the recommended PCB layout and thermal management guidelines provided by NIC Components Corp.
The maximum operating temperature range for NAZT102M16V12.5X14KLBF is typically -40°C to +125°C, but it's recommended to check the datasheet or consult with NIC Components Corp for specific temperature ratings and derating information.
NAZT102M16V12.5X14KLBF is designed to meet standard vibration and shock requirements, but for high-vibration environments, it's recommended to consult with NIC Components Corp for specific guidance on component selection, PCB design, and mounting considerations to ensure reliability and performance.
To ensure the reliability of NAZT102M16V12.5X14KLBF in a humid environment, follow the recommended storage and handling guidelines, and consider using moisture-resistant coatings or conformal coatings on the PCB. Also, ensure proper cleaning and drying of the component and PCB before assembly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NAZT102M16V12.5X14KLBF Overview

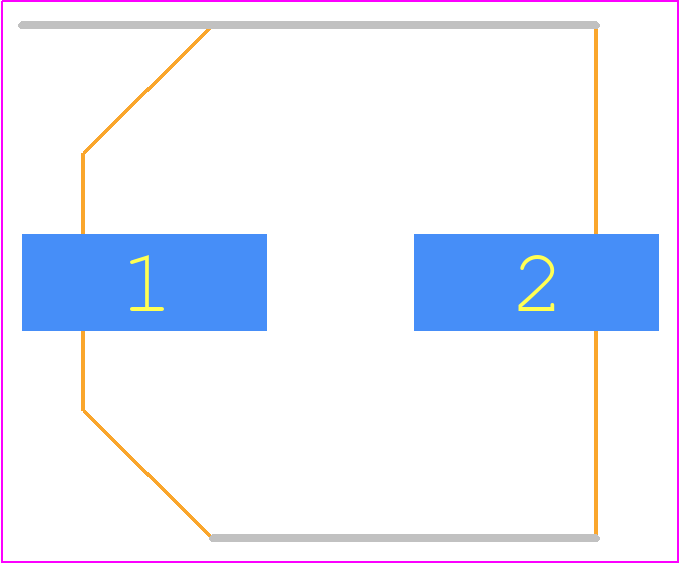

Use the download button to access the NAZT102M16V12.5X14KLBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NAZT1,
or try a keyword search, such as Aluminum Electrolytic Capacitors
