NAZT330M100V10X10.5JBF - NIC Components

Description: NIC Components 33μF 100 V dc Aluminium Electrolytic Capacitor, NAZT Series 5000h 10 Dia. x 10.5mm

Download NAZT330M100V10X10.5JBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NAZT330M100V10X10.5JBF - NIC Components - PCB symbol
click to zoom
PCB Footprints

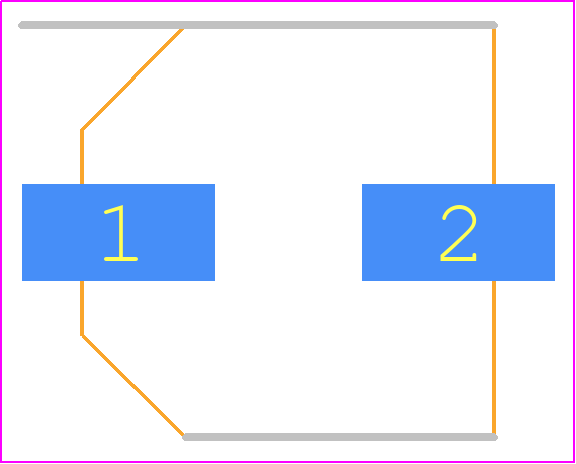

NAZT330M100V10X10.5JBF - NIC Components PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - 10x10.5
click to zoom
3D Models
NAZT330M100V10X10.5JBF - NIC Components - 3D model - Capacitor Al Electrolytic - 10x10.5
click to zoom

NAZT330M100V10X10.5JBF Details

  • Manufacturer Part Number:

    NAZT330M100V10X10.5JBF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    , 4141

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • Manufacturer:

    NIC Components Corp

  • YTEOL:

    0

  • Capacitance:

    33 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Dielectric Material:

    ALUMINUM (WET)

  • Height:

    10.5 mm

  • JESD-609 Code:

    e6

  • Leakage Current:

    0.033 mA

  • Length:

    10.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, 13 Inch

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    100 V

  • Ripple Current:

    70 mA

  • Size Code:

    4141

  • Surface Mount:

    YES

  • Tan Delta:

    0.07

  • Terminal Finish:

    Tin/Bismuth (Sn/Bi)

  • Terminal Shape:

    FLAT

  • Width:

    10.3 mm
