NAZT471M35V12.5X14KLBF - NIC Components

Description: NIC Components 470μF 35 V dc Aluminium Electrolytic Capacitor, NAZT Series 5000h 12.5 Dia. x 14mm

Download NAZT471M35V12.5X14KLBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NAZT471M35V12.5X14KLBF - NIC Components - PCB symbol
click to zoom
PCB Footprints

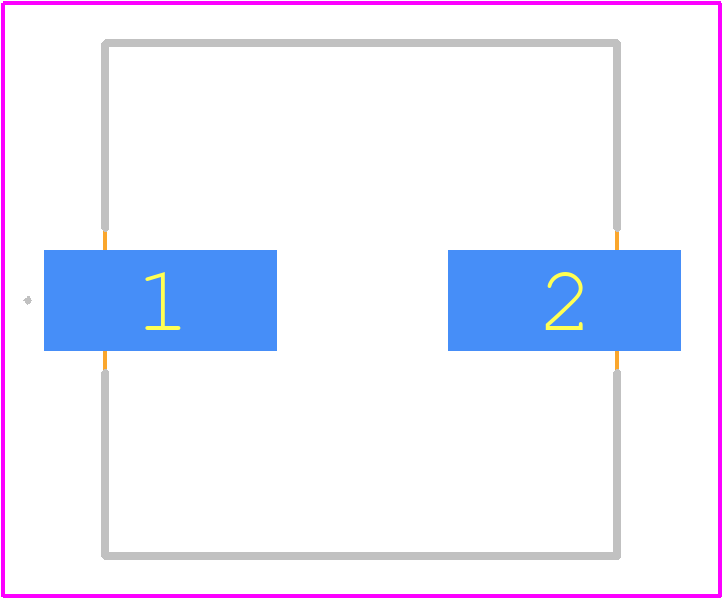

NAZT471M35V12.5X14KLBF - NIC Components PCB footprint - Other - Other - 12.5*14mm
click to zoom
3D Models
NAZT471M35V12.5X14KLBF - NIC Components - 3D model - Other - 12.5*14mm
click to zoom

NAZT471M35V12.5X14KLBF Details

  • Manufacturer Part Number:

    NAZT471M35V12.5X14KLBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    NIC Components Corp

  • YTEOL:

    6

  • Capacitance:

    470 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Dielectric Material:

    ALUMINUM (WET)

  • Height:

    14 mm

  • JESD-609 Code:

    e6

  • Leakage Current:

    0.1645 mA

  • Length:

    12.8 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, 15 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    35 V

  • Ripple Current:

    660 mA

  • Size Code:

    5050

  • Surface Mount:

    YES

  • Tan Delta:

    0.14

  • Terminal Finish:

    Tin/Bismuth (Sn/Bi)

  • Terminal Shape:

    FLAT

  • Width:

    12.8 mm

NAZT471M35V12.5X14KLBF Frequently Asked Questions (FAQs)

  • The operating temperature range of NAZT471M35V12.5X14KLBF is -40°C to +125°C.
  • Yes, NAZT471M35V12.5X14KLBF is RoHS compliant, meaning it meets the EU's Restriction of Hazardous Substances directive.
  • The recommended land pattern for NAZT471M35V12.5X14KLBF can be found in the NIC Components Corp's recommended land pattern document or by contacting their technical support team.
  • Yes, NAZT471M35V12.5X14KLBF is suitable for high-reliability applications, such as aerospace, defense, and medical devices, due to its high-quality materials and manufacturing process.
  • The equivalent part number for NAZT471M35V12.5X14KLBF may vary depending on the specific application and requirements. Engineers should consult with NIC Components Corp's technical support team or authorized distributors for equivalent part numbers.
