Description:Five LVCMOS / LVTTL Outputs up to 200 MHz; Differential Inputs Accept LVPECL, LVDS, HCSL, SSTL, or LVCMOS/LVTTL; Crystal Interface; Crystal Input Frequency Range: 10 MHz to 50 MHz; Output Skew: 10 ps Typical; Additive RMS Phase Jitter @ 156.25 MHz, (12 kHz – 20 MHz): 0.03 ps (Typical); Synchronous Output Enable; Output Defined Level When Input is Floating; Multiple Power Supply Modes Available (See Datasheet); Two Separate Output Bank Power Supplies; Industrial Temperature Range: −40°C to 85°C
A good PCB layout for optimal thermal performance involves placing thermal vias under the package, using a solid ground plane, and keeping the thermal path as short as possible. It's also recommended to use a thermal pad on the bottom of the package.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable heat sink, and ensure good airflow. Additionally, consider using thermal interface materials and following proper PCB design guidelines.
Exceeding the maximum junction temperature (Tj) rating can lead to reduced reliability, increased thermal resistance, and potentially even device failure. It's crucial to ensure that the device operates within the recommended temperature range to maintain its performance and lifespan.
The NB3F8L3005CMNTXG is an industrial-grade device, but it may not meet the specific requirements for high-reliability or automotive applications. It's essential to review the device's specifications and consult with onsemi's application engineers to determine its suitability for such applications.
To prevent electrostatic discharge (ESD) damage, it's recommended to follow proper ESD handling and assembly procedures, such as using ESD-safe workstations, wrist straps, and packaging materials. Additionally, consider implementing ESD protection devices in the circuit design.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NB3F8L3005CMNTXG Overview

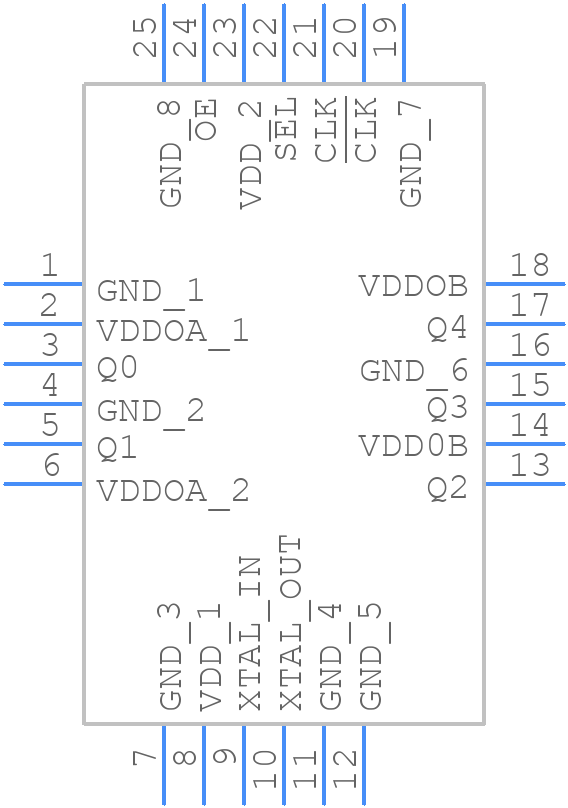

Use the download button to access the NB3F8L3005CMNTXG schematic symbol, PCB footprint, and 3D model.
