The recommended operating voltage range for NB3F8L3010CMNTWG is 2.7V to 5.5V, as specified in the datasheet. However, it's essential to note that the device can tolerate a voltage range of 2.3V to 6.5V for short durations, but prolonged operation outside the recommended range may affect its performance and reliability.
To ensure proper power-up and initialization, follow these steps: 1) Apply a stable power supply within the recommended voltage range. 2) Ensure the power supply has a low noise and ripple. 3) Use a bypass capacitor (e.g., 0.1uF) between the VCC and GND pins to filter out noise. 4) Initialize the device according to the datasheet's recommended startup sequence.
The maximum current rating for the NB3F8L3010CMNTWG is 100mA, as specified in the datasheet. However, it's essential to consider the device's power dissipation and thermal characteristics to ensure reliable operation.
To handle thermal management, follow these guidelines: 1) Ensure good airflow around the device. 2) Use a heat sink or thermal pad if the device is expected to operate at high temperatures or high currents. 3) Keep the device away from heat sources and ensure proper PCB layout to minimize thermal resistance.
The NB3F8L3010CMNTWG has built-in ESD protection and latch-up prevention measures. However, it's still essential to follow proper handling and assembly procedures to prevent damage. Use ESD-safe equipment, handle the device by the body or pins, and avoid overvoltage conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NB3F8L3010CMNTWG Overview

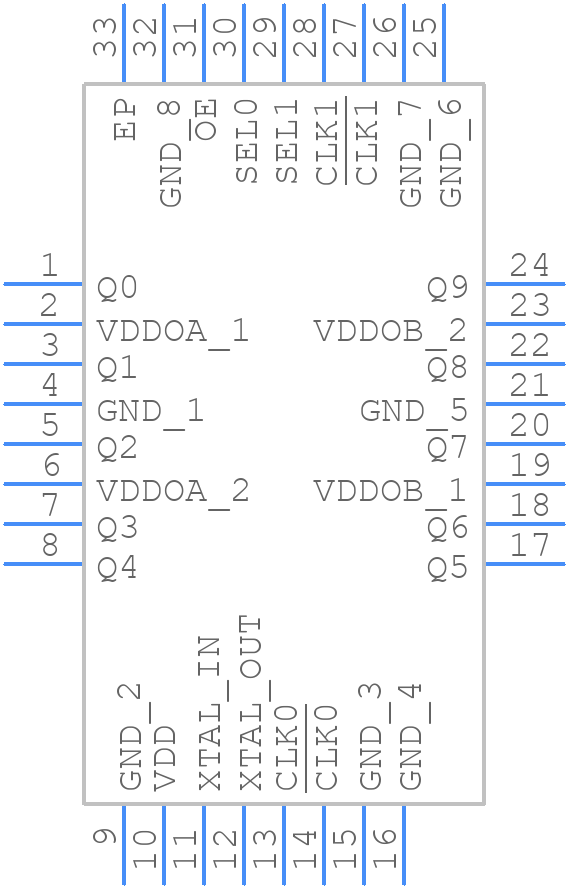

Use the download button to access the NB3F8L3010CMNTWG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NB3F8,
or try a keyword search, such as Clock Drivers
