Part Image

NB3H83905CDG - onsemi

Description: --

Download NB3H83905CDG Model

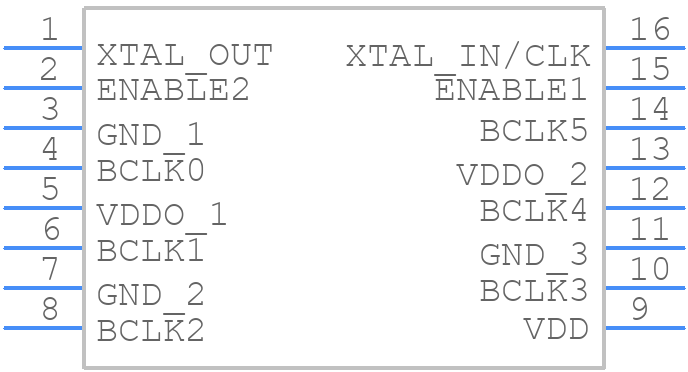

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NB3H83905CDG - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-16 CASE751B-05
click to zoom
3D Models
NB3H83905CDG - onsemi  - 3D model - Small Outline Packages - SOIC-16 CASE751B-05
click to zoom

NB3H83905CDG Details

  • Manufacturer Part Number:

    NB3H83905CDG

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    751B-05

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    9.9 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

NB3H83905CDG Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal path as short as possible. It's also recommended to use a thermal pad on the bottom of the device and to connect it to a thermal plane or a heat sink.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable heat sink, and ensure good thermal conductivity between the device and the heat sink. Additionally, consider using thermal interface materials and following proper PCB design and assembly practices.
  • Operating the device at the maximum junction temperature (TJ) of 150°C can reduce its lifespan and reliability. It's recommended to keep the junction temperature as low as possible to ensure optimal performance and reliability. A good rule of thumb is to keep TJ at least 20°C below the maximum rating.
  • The NB3H83905CDG has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Use ESD-safe materials, wrist straps, and mats, and ensure that the device is properly grounded during handling.
  • The recommended soldering conditions for the NB3H83905CDG are: peak temperature of 260°C, soldering time of 10-30 seconds, and a temperature ramp rate of 3°C/second. It's also essential to use a soldering iron with a temperature control and to follow proper soldering techniques.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NB3H83905CDG Overview

Use the download button to access the NB3H83905CDG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NB3H8, or try a keyword search, such as Clock Drivers
