NB3L202KMNG - onsemi

Description: 2.5 V ±5% / 3.3 V ±10% Supply Voltage Operation; 2 HCSL Outputs; DB200H Compliant; Individual OE Control Pin for Each Bank of Outputs; 100 ps Max Output−to−Output Skew Performance; 1 ns Typical Propagation Delay; 500 ps Typical Rise and Fall Times; 80 fs Maximum Additive Phase Jitter RMS; Maximum Input Clock Frequency > 350 MHz; PCIe Gen 3 and Gen 4 Compliant

Download NB3L202KMNG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

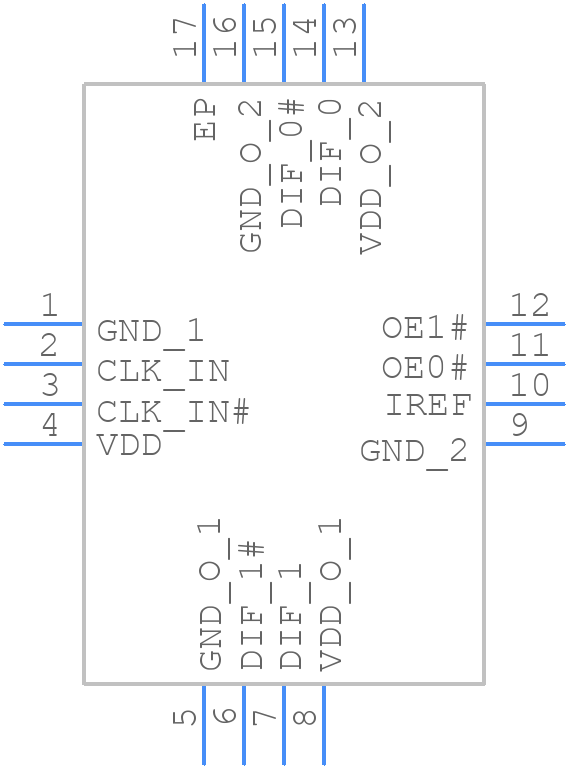

NB3L202KMNG - onsemi - PCB symbol
click to zoom
PCB Footprints
NB3L202KMNG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN16 3x3 0.5 P CASE 485AE ISSUE A
click to zoom
3D Models
NB3L202KMNG - onsemi - 3D model - Quad Flat No-Lead - QFN16 3x3 0.5 P CASE 485AE ISSUE A
click to zoom

NB3L202KMNG Details

  • Manufacturer Part Number:

    NB3L202KMNG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN-16

  • Package Description:

    QFN-16

  • Manufacturer Package Code:

    485FM

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Date Of Intro:

    2016-04-01

  • Manufacturer:

    onsemi

  • YTEOL:

    6.9

  • Additional Feature:

    ALSO OPERATES AT 2.97 TO 3.63 V SUPPLY

  • Family:

    NB3

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    110 mA

  • Prop. Delay@Nom-Sup:

    1.4 ns

  • Propagation Delay (tpd):

    1.4 ns

  • Same Edge Skew-Max (tskwd):

    0.02 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    2.625 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

  • fmax-Min:

    350 MHz

NB3L202KMNG Frequently Asked Questions (FAQs)

  • A good PCB layout for the NB3L202KMNG involves keeping the input and output traces short and wide, using a solid ground plane, and placing decoupling capacitors close to the device. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper powering and decoupling of the NB3L202KMNG, use a high-quality power supply with low ripple and noise, and add decoupling capacitors (e.g., 10uF and 100nF) close to the device. Also, ensure that the power and ground pins are connected to a solid power and ground plane on the PCB.
  • The NB3L202KMNG is rated for operation from -40°C to 125°C (junction temperature). However, it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
  • To troubleshoot issues with the NB3L202KMNG, start by checking the power supply and decoupling, then verify the input and output signals using an oscilloscope. Check for any signs of overheating, and ensure that the device is properly soldered and connected to the PCB.
  • Yes, the NB3L202KMNG is suitable for use in high-reliability and safety-critical applications, such as automotive, industrial, and aerospace systems. However, it's essential to follow proper design and testing procedures to ensure the device meets the required safety and reliability standards.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NB3L202KMNG Overview

Use the download button to access the NB3L202KMNG schematic symbol, PCB footprint, and 3D model.
