NB3N111KMNR4G - onsemi

Description: Typical Input Clock Frequency 100, 133, 166, or 400 MHz; 220 ps Typical Rise and Fall Times; 800 ps Typical Propagation Delay; Delta tpd 100 ps Maximum Propagation Delay Variation per Diff Pair; 0.1 ps Typical RMS Phase Jitter; Operating Range: VCC = 3.0 V to 3.6 V with GND = 0 V; Differential HCSL Output Levels

Download NB3N111KMNR4G Model

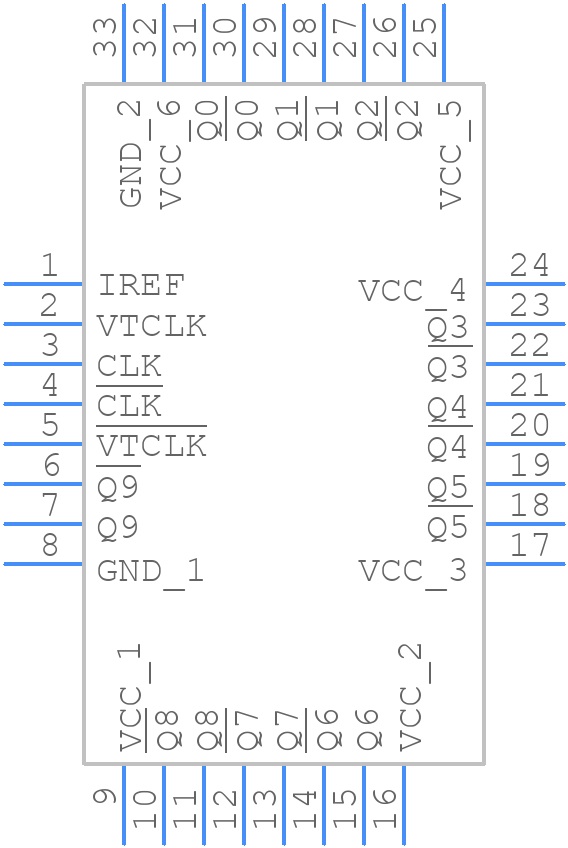

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NB3N111KMNR4G - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN32 5x5, 0.5P CASE 488AM ISSUE A_2023
click to zoom
3D Models
NB3N111KMNR4G - onsemi  - 3D model - Quad Flat No-Lead - QFN32 5x5, 0.5P CASE 488AM ISSUE A_2023
click to zoom

NB3N111KMNR4G Details

  • Manufacturer Part Number:

    NB3N111KMNR4G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFN32, 5x5, 0.5P, 3.1x3.1EP

  • Pin Count:

    32

  • Manufacturer Package Code:

    488AM

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    3

  • Family:

    3N

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of True Outputs:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    1.1 ns

  • Propagation Delay (tpd):

    1.1 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.1 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

NB3N111KMNR4G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NB3N111KMNR4G should consider the following: keep the input and output traces short and symmetrical, use a solid ground plane, and place decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure reliable operation over the entire operating temperature range, it's essential to follow proper thermal management practices. This includes providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device. Additionally, consider using a thermal interface material (TIM) between the device and the heat sink.
  • Operating the NB3N111KMNR4G at a higher voltage than the recommended 3.3V may increase power consumption and reduce the device's lifespan. Operating at a lower voltage may reduce power consumption but may also affect the device's performance and accuracy. It's recommended to operate the device within the specified voltage range for optimal performance and reliability.
  • The NB3N111KMNR4G has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding yourself before handling the device, and using an ESD wrist strap or mat.
  • When using the NB3N111KMNR4G in a high-reliability or safety-critical application, consider the following: ensure the device is properly derated, follow proper thermal management practices, and implement redundant or fail-safe design strategies. Additionally, consult with onsemi's application notes and reliability reports for specific guidance.
