A good PCB layout for the NB3N2302DG involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
To ensure proper biasing, connect the VCC pin to a stable 3.3V power supply, and the VEE pin to a stable -3.3V power supply. The input common-mode voltage should be within the range of VEE + 1.5V to VCC - 1.5V. Additionally, ensure that the input signals are within the recommended common-mode voltage range.
The maximum allowable power dissipation for the NB3N2302DG is 500mW. To ensure reliable operation, the device should be operated within the recommended operating conditions, and the junction temperature should not exceed 150°C.
The NB3N2302DG has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment.
The NB3N2302DG is designed to operate up to 3.2 GHz, but the recommended operating frequency range is up to 2.5 GHz for optimal performance and minimal signal degradation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NB3N2302DG Overview

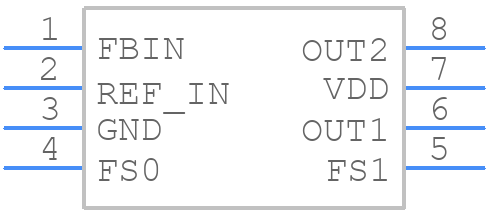

Use the download button to access the NB3N2302DG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NB3N2,
or try a keyword search, such as Clock Drivers
