A good PCB layout for the NB3N51054DTG should consider the following: keep the input and output traces short and symmetrical, use a solid ground plane, and place decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure proper biasing, follow these guidelines: use a stable voltage source, decouple the supply lines with capacitors, and ensure the input voltage is within the recommended range (2.7V to 5.5V). Additionally, use a pull-up or pull-down resistor on the enable pin (EN) to prevent floating states.
The maximum current rating for the output pins (OUT1 and OUT2) is 20mA. Exceeding this rating may cause damage to the device or affect its performance. Ensure that the output current is within the recommended range to maintain reliability and prevent overheating.
To manage thermal issues, consider the following: use a heat sink or thermal pad on the exposed pad (EP) of the device, ensure good airflow around the device, and avoid blocking the airflow with nearby components. The device's junction temperature (TJ) should not exceed 150°C.
To protect the device from electrostatic discharge (ESD), use ESD protection devices such as TVS diodes or ESD arrays on the input and output lines. Follow the recommended ESD protection circuitry and layout guidelines to ensure the device's reliability and performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NB3N51054DTG Overview

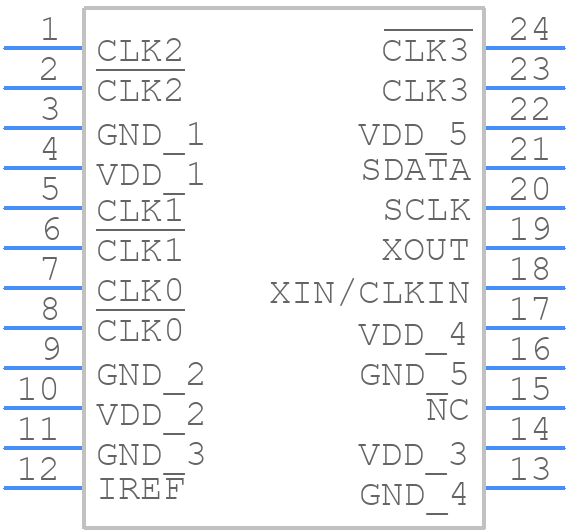

Use the download button to access the NB3N51054DTG schematic symbol, PCB footprint, and 3D model.
