NB3N551DG - onsemi

Description: Clock Fanout Buffer 4-OUT 1-IN 1:4 8-Pin SOIC N Rail

Download NB3N551DG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

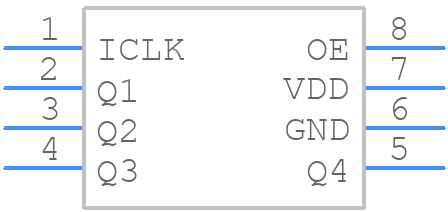

NB3N551DG - onsemi - PCB symbol
click to zoom
PCB Footprints
NB3N551DG - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom
3D Models
NB3N551DG - onsemi - 3D model - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom

NB3N551DG Details

  • Manufacturer Part Number:

    NB3N551DG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Family:

    3N

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.025 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    95 mA

  • Prop. Delay@Nom-Sup:

    6 ns

  • Propagation Delay (tpd):

    3 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.16 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

  • fmax-Min:

    180 MHz

NB3N551DG Frequently Asked Questions (FAQs)

  • A good PCB layout for the NB3N551DG involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, it's essential to follow the recommended operating conditions, including input voltage, output voltage, and output current. Additionally, the device requires a minimum output capacitance of 10uF to ensure stability. It's also recommended to add a 10nF capacitor in parallel with the output capacitor to improve transient response.
  • The NB3N551DG is rated for operation from -40°C to 125°C ambient temperature range. However, the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within the recommended temperature range for optimal performance.
  • Yes, the NB3N551DG is suitable for high-reliability applications. It's manufactured using a proprietary BiCMOS process and is designed to meet the requirements of automotive and industrial applications. However, it's essential to follow the recommended operating conditions and design guidelines to ensure the device's reliability.
  • To troubleshoot issues with the NB3N551DG, start by verifying the input voltage, output voltage, and output current. Check for any signs of overheating, and ensure that the device is operated within the recommended operating conditions. Use an oscilloscope to check for any oscillations or noise on the output. If the issue persists, consult the datasheet and application notes for further guidance.
