NB3V1108CDTR2G - onsemi

Description: High−Performance 1:8 LVCMOS Clock Buffer; Very Low Output−to−Output Skew < 50 ps; Supply Voltage: 3.3 V, 2.5 V or 1.8 V; Available in 16−Pin TSSOP; Operating Temperature Range: –40°C to 105°C; Low Additive Jitter; fmax = 250 MHz for 3.3 V; fmax = 180 MHz for 2.5 V; fmax = 133 MHz for 1.8 V; These Devices are Pb−Free and are RoHS Compliant

Download NB3V1108CDTR2G Model

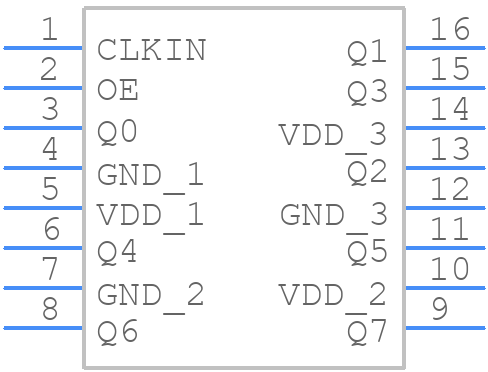

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NB3V1108CDTR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSOPP-16
click to zoom
3D Models
NB3V1108CDTR2G - onsemi  - 3D model - Small Outline Packages - TSOPP-16
click to zoom

NB3V1108CDTR2G Details

  • Manufacturer Part Number:

    NB3V1108CDTR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP-16

  • Manufacturer Package Code:

    948F-01

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-01-20

  • Manufacturer:

    onsemi

  • YTEOL:

    6.75

  • Additional Feature:

    ALSO OPERATES AT 2.5V AND 3.3V VCC NOMINAL SUPPLY

  • Family:

    NB3V

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of True Outputs:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    3.5 ns

  • Same Edge Skew-Max (tskwd):

    0.075 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    1.89 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • fmax-Min:

    250 MHz

NB3V1108CDTR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NB3V1108CDTR2G involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the device close to the power supply decoupling capacitors. Additionally, it's recommended to use a low-ESR capacitor for the output filter capacitor.
  • To ensure stability, it's essential to follow the recommended operating conditions, such as input voltage, output current, and temperature range. Additionally, a minimum output capacitance of 10uF is recommended, and the device should be operated within the specified frequency range.
  • The maximum allowed voltage drop across the NB3V1108CDTR2G is 3.3V. Exceeding this voltage drop may affect the device's performance and reliability.
  • The NB3V1108CDTR2G is rated for operation up to 125°C. However, it's essential to consider the device's power dissipation and thermal management in high-temperature environments to ensure reliable operation.
  • To troubleshoot issues, start by verifying the input voltage, output voltage, and output current. Check for proper PCB layout, decoupling, and thermal management. Use an oscilloscope to inspect the output waveform and look for signs of oscillation or instability.
