NB4L16MMNG - onsemi

Description: Maximum Input Clock Frequency > 3.5 GHz Typical; Maximum Input Data Frequency > 5 Gb/s Typical; 220 ps Typical Propagation Delay ; 65 ps Typical Rise and Fall Times ; CML Output with Operating Range: VCC = 2.375 V to 3.8 V with VEE = 0 V; CML Output Level (400 mV Peak-to-Peak Output), Differential Output Only; 50 Ω Internal Input and Output Termination Resistors; Functionally Compatible with Existing 2.5 V / 3.3 V LVEL, LVEP, EP, and SG Devices; Pb-Free Packages are Available

Download NB4L16MMNG Model

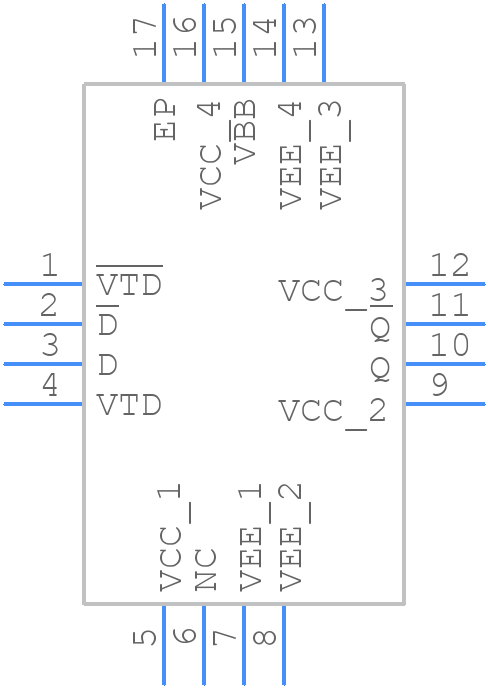

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NB4L16MMNG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN16 3x3, 0.5P CASE 485G ISSUE G
click to zoom
3D Models
NB4L16MMNG - onsemi  - 3D model - Quad Flat No-Lead - QFN16 3x3, 0.5P CASE 485G ISSUE G
click to zoom

NB4L16MMNG Details

  • Manufacturer Part Number:

    NB4L16MMNG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN16 3x3, 0.5P

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    485G-01

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

NB4L16MMNG Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure that the device is operated within the recommended voltage and current ratings, and that the PCB is designed to minimize thermal resistance. Also, consider using a thermal interface material (TIM) to improve heat transfer between the device and heat sink.
  • Exceeding the maximum Tj rating can lead to reduced device lifespan, increased thermal resistance, and potentially catastrophic failure. It is essential to ensure that the device operates within the recommended temperature range to maintain reliability and performance.
  • Implement ESD protection measures such as using ESD-sensitive handling procedures, using anti-static packaging and storage, and incorporating ESD protection devices (e.g., TVS diodes) in the circuit design.
  • Follow standard PCB assembly and rework procedures, ensuring that the device is handled and stored in an ESD-safe environment. Use a reflow oven with a controlled temperature profile to prevent thermal shock and ensure reliable solder joints.
