NB4L52MNG - onsemi

Description: Maximum Input Clock Frequency > 4 GHz Typical; 330 ps Typical Propagation Delay; 145 ps Typical Rise and Fall Times; Differential LVPECL Outputs, 750 mV PeaktoPeak, Typical; Operating Range: VCC = 2.375 V to 5.5 V with VEE = 0 V

Download NB4L52MNG Model

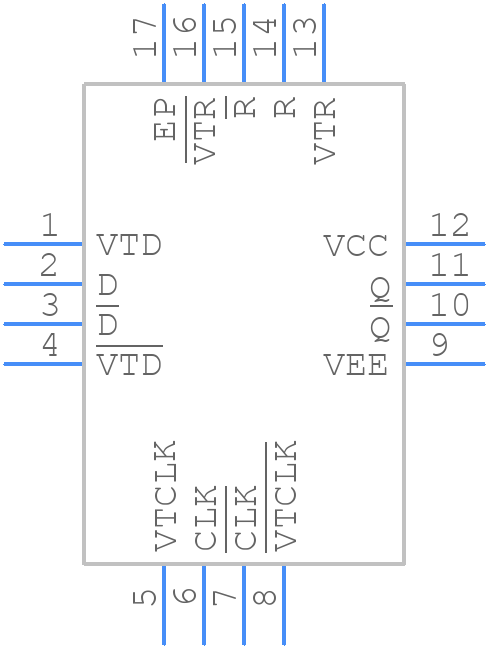

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NB4L52MNG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN16 3x3, 0.5P CASE 485G ISSUE G
click to zoom
3D Models
NB4L52MNG - onsemi  - 3D model - Quad Flat No-Lead - QFN16 3x3, 0.5P CASE 485G ISSUE G
click to zoom

NB4L52MNG Details

  • Manufacturer Part Number:

    NB4L52MNG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN16, 3x3, 0.5P

  • Pin Count:

    16

  • Manufacturer Package Code:

    485G-01

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Additional Feature:

    LVPECL MODE: VCC = 0V WITH VEE = -2.375V TO -5.5V

  • Family:

    4L

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    3 mm

  • Logic IC Type:

    D FLIP-FLOP

  • Max Frequency@Nom-Sup:

    2500000000 Hz

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    RAIL

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    0.5 ns

  • Propagation Delay (tpd):

    0.5 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    ECL

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Gold/Palladium (Ni/Au/Pd)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    3 mm
