A good PCB layout for the NB4L858MFAG should prioritize thermal management, minimize parasitic inductance, and ensure a low-impedance path for the output. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. Keep the input and output capacitors close to the device, and use a thermal pad for heat dissipation.
For the input capacitor, choose a low-ESR capacitor with a value between 10uF to 22uF. For the output capacitor, choose a low-ESR capacitor with a value between 10uF to 47uF. The capacitor selection should be based on the specific application requirements, such as ripple current, voltage rating, and physical size.
The NB4L858MFAG is rated for operation up to 125°C junction temperature. However, for reliable operation, it's recommended to keep the ambient temperature below 105°C to ensure a sufficient thermal margin.
The NB4L858MFAG requires a bias voltage of 5V to 12V on the VCC pin. Ensure the bias voltage is stable and within the recommended range to maintain optimal performance and prevent damage to the device.
The recommended input voltage range for the NB4L858MFAG is 2.7V to 5.5V. Operating the device outside this range may affect its performance, efficiency, or reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NB4L858MFAG Overview

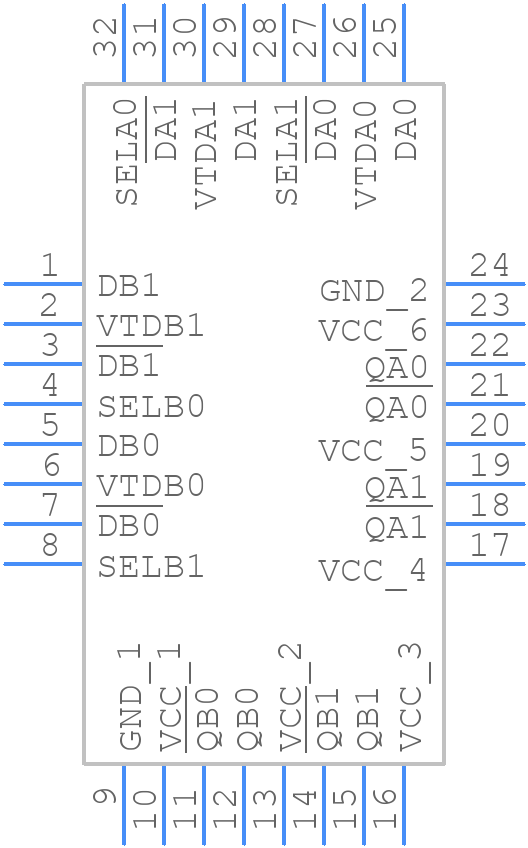

Use the download button to access the NB4L858MFAG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NB4L8,
or try a keyword search, such as Multiplexers or Switches
