NB4N855SMR4G - onsemi

Description: Guaranteed Input Clock Frequency up to 1.0 GHz; Guaranteed Input Data Rate up to 1.5 Gb/s; 490 ps Maximum Propagation Delay; 1.0 ps Maximum RMS Jitter; 180 ps Maximum Rise/Fall Times; Single Power Supply; VCC = 3.3 V ±10%; Temperature Compensated TIA/EIA-644 Compliant LVDS Outputs; GND + 50 mV to VCC - 50 mV VCMR Range; Pb-Free Packages is Available

Download NB4N855SMR4G Model

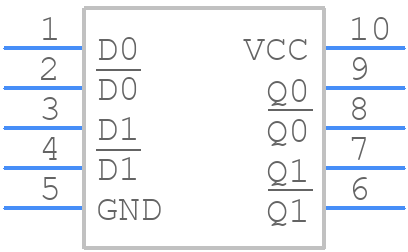

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NB4N855SMR4G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - Micro10 (Pb−Free)
click to zoom
3D Models
NB4N855SMR4G - onsemi  - 3D model - Small Outline Packages - Micro10 (Pb−Free)
click to zoom

NB4N855SMR4G Details

  • Manufacturer Part Number:

    NB4N855SMR4G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    C/O FOR MICRO 10 PKG

  • Package Description:

    MICRO, 10 PIN

  • Pin Count:

    10

  • Manufacturer Package Code:

    846B

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    onsemi

  • Family:

    855

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    S-PDSO-G10

  • Length:

    3 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Number of True Outputs:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Power Supply Current-Max (ICC):

    53 mA

  • Propagation Delay (tpd):

    0.49 ns

  • Same Edge Skew-Max (tskwd):

    0.1 ns

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

NB4N855SMR4G Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the NB4N855SMR4G is 2.7V to 5.5V.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF and a maximum equivalent series resistance (ESR) of 1 ohm.
  • The maximum current that the NB4N855SMR4G can deliver is 1.5A.
  • To protect the NB4N855SMR4G from overheating, it is recommended to provide adequate heat sinking and to ensure that the device is operated within the recommended operating temperature range of -40°C to 125°C.
  • The EN (enable) pin is used to enable or disable the output voltage of the NB4N855SMR4G. When the EN pin is high, the output voltage is enabled, and when it is low, the output voltage is disabled.
