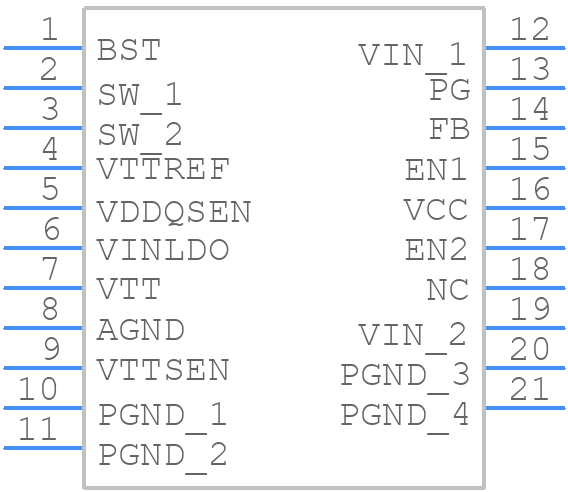

NB675GL-Z - Monolithic Power Systems (MPS)

NB675GL-Z Details

• Manufacturer Part Number:

  NB675GL-Z

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active Unconfirmed

• Package Description:

  3 X 4 MM, MO-220, QFN-21

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  24 Weeks

• Manufacturer:

  Monolithic Power Systems

• YTEOL:

  2

• Additional Feature:

  ADJUSTABLE OUTPUT VOLTAGE RANGE FROM 0.604 V TO 5.5 V

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  VOLTAGE-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  24 V

• Input Voltage-Min:

  5 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-XXSS-N21

• JESD-609 Code:

  e3

• Length:

  4 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  21

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  10 A

• Package Body Material:

  UNSPECIFIED

• Package Code:

  QCCN

• Package Equivalence Code:

  LCC21(UNSPEC)

• Package Shape:

  RECTANGULAR

• Package Style:

  SPECIAL SHAPE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  600 kHz

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Position:

  UNSPECIFIED

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  3 mm
