NB681GD-Z - Monolithic Power Systems (MPS)

Description: Conv DC-DC Single Step Down 4.5V to 26V 13-Pin QFN T/R

Download NB681GD-Z Model

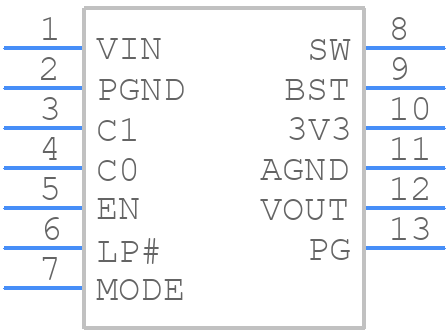

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NB681GD-Z - Monolithic Power Systems (MPS) PCB footprint - Other - Other - QFN-13 (2mm x 3mm)
click to zoom
3D Models
NB681GD-Z - Monolithic Power Systems (MPS)  - 3D model - Other - QFN-13 (2mm x 3mm)
click to zoom

NB681GD-Z Details

  • Manufacturer Part Number:

    NB681GD-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-13

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Monolithic Power Systems

  • YTEOL:

    7.7

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XQCC-N13

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    13

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC13,08X12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    750 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    2 mm

NB681GD-Z Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short, wide traces for the power lines.
  • Ensure that the output capacitor has a low ESR, and the input capacitor has a high capacitance. Also, add a 10nF-100nF capacitor between the VIN and GND pins to filter out noise.
  • Although the datasheet specifies a maximum input voltage of 18V, it's recommended to limit the input voltage to 15V to ensure reliable operation and prevent overheating.
  • The output voltage ripple can be estimated using the formula: ΔVout = (Iout * ESR) / (f * Cout), where Iout is the output current, ESR is the output capacitor's equivalent series resistance, f is the switching frequency, and Cout is the output capacitance.
  • A 10uF-22uF X5R or X7R ceramic capacitor is recommended for the input capacitor. This type of capacitor provides a low ESR and is suitable for high-frequency switching applications.
